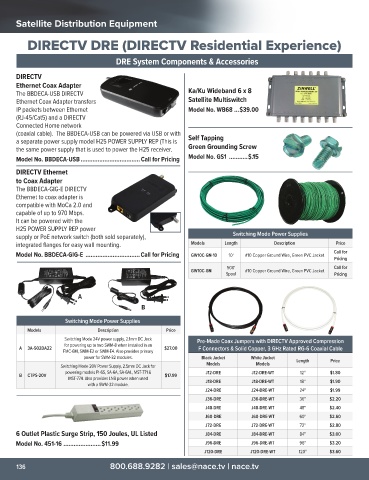

Page 138 - NACE_Catalog_2021

Satellite Distribution Equipment

DIRECTV DRE (DIRECTV Residential Experience)

DRE System Components & Accessories

DIRECTV
Ethernet Coax Adapter
The BBDECA-USB DIRECTV Ka/Ku Wideband 6 x 8
Ethernet Coax Adapter transfers Satellite Multiswitch
IP packets between Ethernet Model No. WB68 ...$39.00
(RJ-45/Cat5) and a DIRECTV
Connected Home network
(coaxial cable). The BBDECA-USB can be powered via USB or with
a separate power supply model H25 POWER SUPPLY REP (This is Self Tapping
the same power supply that is used to power the H25 receiver. Green Grounding Screw
Model No. BBDECA-USB ...................................Call for Pricing Model No. GS1 ...........$.15

DIRECTV Ethernet
to Coax Adapter
The BBDECA-GIG-E DIRECTV
Ethernet to coax adapter is
compatible with MoCa 2.0 and
capable of up to 970 Mbps.
It can be powered with the
H25 POWER SUPPLY REP power
supply or PoE network switch (both sold separately), Switching Mode Power Supplies
integrated flanges for easy wall mounting. Models Length Description Price
Model No. BBDECA-GIG-E ................................Call for Pricing GW10C-GN-10 10' #10 Copper Ground Wire, Green PVC Jacket Call for
Pricing
500' Call for
GW10C-GN #10 Copper Ground Wire, Green PVC Jacket
Spool Pricing

A

B
Switching Mode Power Supplies

Models Description Price
Switching Mode 24V power supply, 2.1mm DC Jack Pre-Made Coax Jumpers with DIRECTV Approved Compression
for powering up to two SWM-8 when installed in an
A 3A-502DA22 $27.00 F Connectors & Solid Copper, 3 GHz Rated RG-6 Coaxial Cable
FMC-6M, SWM-E2 or SWM-E4. Also provides primary
power for SWM-32 modules. Black Jacket White Jacket Length Price
Switching Mode 20V Power Supply, 2.5mm DC Jack for Models Models
powering models PI-6S, SA-6A, SA-6AL, MST-771 & J12-DRE J12-DRE-WT 12" $1.80
B CTPS-20V $17.99
MST-774. Also provides LNB power when used J18-DRE J18-DRE-WT 18" $1.90
with a SWM-32 module.
J24-DRE J24-DRE-WT 24" $1.99
J36-DRE J36-DRE-WT 36" $2.20
J48-DRE J48-DRE-WT 48" $2.40
J60-DRE J60-DRE-WT 60" $2.60
J72-DRE J72-DRE-WT 72" $2.80
6 Outlet Plastic Surge Strip, 150 Joules, UL Listed J84-DRE J84-DRE-WT 84" $3.00
Model No. 451-16 ......................$11.99 J96-DRE J96-DRE-WT 96" $3.20
J120-DRE J120-DRE-WT 120" $3.60

136 800.688.9282 | sales@nace.tv | nace.tv
