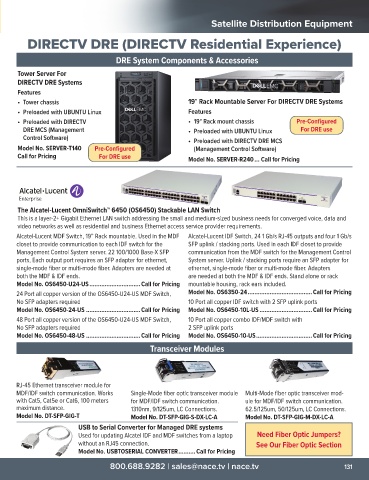

Page 133 - NACE_Catalog_2021

Satellite Distribution Equipment

DIRECTV DRE (DIRECTV Residential Experience)

DRE System Components & Accessories

Tower Server For
DIRECTV DRE Systems
Features
• Tower chassis 19" Rack Mountable Server For DIRECTV DRE Systems
• Preloaded with UBUNTU Linux Features
• Preloaded with DIRECTV • 19" Rack mount chassis Pre-Configured
DRE MCS (Management • Preloaded with UBUNTU Linux For DRE use
Control Software) • Preloaded with DIRECTV DRE MCS
Model No. SERVER-T140 Pre-Configured (Management Control Software)
Call for Pricing For DRE use Model No. SERVER-R240 ... Call for Pricing

The Alcatel-Lucent OmniSwitch™ 6450 (OS6450) Stackable LAN Switch
This is a layer-2+ Gigabit Ethernet LAN switch addressing the small and medium-sized business needs for converged voice, data and
video networks as well as residential and business Ethernet access service provider requirements.
Alcatel-Lucent MDF Switch, 19” Rack mountable. Used in the MDF Alcatel-Lucent IDF Switch, 24 1 Gb/s RJ-45 outputs and four 1 Gb/s
closet to provide communication to each IDF switch for the SFP uplink / stacking ports. Used in each IDF closet to provide
Management Control System server. 22 100/1000 Base-X SFP communication from the MDF switch for the Management Control
ports, Each output port requires an SFP adapter for ethernet, System server. Uplink / stacking ports require an SFP adapter for
single-mode fiber or multi-mode fiber. Adapters are needed at ethernet, single-mode fiber or multi-mode fiber. Adapters
both the MDF & IDF ends. are needed at both the MDF & IDF ends. Stand alone or rack
Model No. OS6450-U24-US ..............................Call for Pricing mountable housing, rack ears included.
24 Port all copper version of the OS6450-U24-US MDF Switch, Model No. OS6350-24 ......................................Call for Pricing
No SFP adapters required 10 Port all copper IDF switch with 2 SFP uplink ports
Model No. OS6450-24-US ................................Call for Pricing Model No. OS6450-10L-US ...............................Call for Pricing
48 Port all copper version of the OS6450-U24-US MDF Switch, 10 Port all copper combo IDF/MDF switch with
No SFP adapters required 2 SFP uplink ports
Model No. OS6450-48-US ................................Call for Pricing Model No. OS6450-10-US .................................Call for Pricing

Transceiver Modules

RJ-45 Ethernet transceiver module for
MDF/IDF switch communication. Works Single-Mode fiber optic transceiver module Multi-Mode fiber optic transceiver mod-
with Cat5, Cat5e or Cat6, 100 meters for MDF/IDF switch communication. ule for MDF/IDF switch communication.
maximum distance. 1310nm, 9/125um, LC Connections. 62.5/125um, 50/125um, LC Connections.
Model No. DT-SFP-GIG-T Model No. DT-SFP-GIG-S-DX-LC-A Model No. DT-SFP-GIG-M-DX-LC-A
USB to Serial Converter for Managed DRE systems
Used for updating Alcatel IDF and MDF switches from a laptop Need Fiber Optic Jumpers?
without an RJ45 connection. See Our Fiber Optic Section
Model No. USBTOSERIAL CONVERTER ..........Call for Pricing
