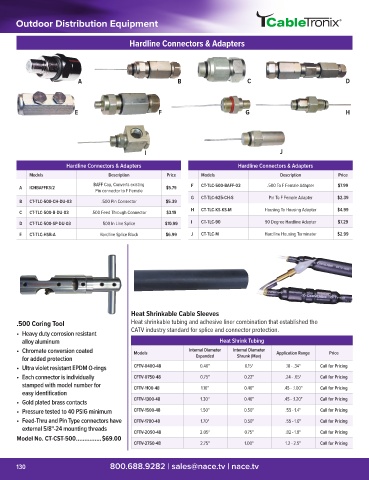

Page 132 - NACE_Catalog_2021

Outdoor Distribution Equipment

Hardline Connectors & Adapters

A B C D

E F G H

I J

Hardline Connectors & Adapters Hardline Connectors & Adapters
Models Description Price Models Description Price
BAFF Cap, Converts existing F CT-TLC-500-BAFF-03 .500 To F Female Adapter $7.99
A ICHBAFFKS/2 $5.79
Pin connector to F Female
G CT-TLC-625-CH-S Pin To F Female Adapter $2.39
B CT-TLC-500-CH-DU-03 .500 Pin Connector $5.39
H CT-TLC-KS-KS-M Housing To Housing Adapter $4.99
C CT-TLC-500-B-DU-03 .500 Feed Through Connector $3.19
D CT-TLC-500-SP-DU-03 500 In Line Splice $10.99 I CT-TLC-90 90 Degree Hardline Adapter $7.29
E CT-TLC-HSB-A Hardline Splice Block $6.99 J CT-TLC-M Hardline Housing Terminator $2.99

Heat Shrinkable Cable Sleeves
.500 Coring Tool Heat shrinkable tubing and adhesive liner combination that established the
• Heavy duty corrosion resistant CATV industry standard for splice and connector protection.
alloy aluminum Heat Shrink Tubing
• Chromate conversion coated Models Internal Diameter Internal Diameter Application Range Price
for added protection Expanded Shrunk (Max)
• Ultra violet resistant EPDM O-rings CFTV-0400-48 0.40" 0.15" .18 - .34" Call for Pricing
• Each connector is individually CFTV-0750-48 0.75" 0.22" .24 - .65" Call for Pricing
stamped with model number for CFTV-1100-48 1.10" 0.40" .45 - .1.00" Call for Pricing
easy identification
• Gold plated brass contacts CFTV-1300-48 1.30" 0.40" .45 - .1.20" Call for Pricing
• Pressure tested to 40 PSIG minimum CFTV-1500-48 1.50" 0.50" .55 - 1.4" Call for Pricing
• Feed-Thru and Pin Type connectors have CFTV-1700-48 1.70" 0.50" .55 - 1.6" Call for Pricing
external 5/8"-24 mounting threads CFTV-2050-48 2.05" 0.75" .82 - 1.8" Call for Pricing
Model No. CT-CST-500 ...............$69.00
CFTV-2750-48 2.75" 1.00" 1.2 - 2.5" Call for Pricing

130 800.688.9282 | sales@nace.tv | nace.tv
