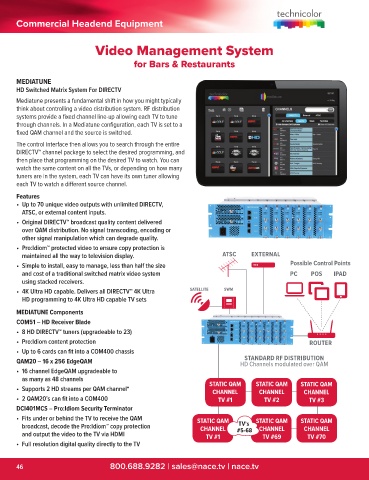

Commercial Headend Equipment

Video Management System

for Bars & Restaurants

MEDIATUNE
HD Switched Matrix System For DIRECTV

Mediatune presents a fundamental shift in how you might typically
think about controlling a video distribution system. RF distribution
systems provide a fixed channel line-up allowing each TV to tune
through channels. In a Mediatune configuration, each TV is set to a
fixed QAM channel and the source is switched.
The control interface then allows you to search through the entire
DIRECTV™ channel package to select the desired programming, and
then place that programming on the desired TV to watch. You can
watch the same content on all the TVs, or depending on how many
tuners are in the system, each TV can have its own tuner allowing
each TV to watch a different source channel.

Features
• Up to 70 unique video outputs with unlimited DIRECTV,
ATSC, or external content inputs.
• Original DIRECTV™ broadcast quality content delivered
over QAM distribution. No signal transcoding, encoding or
other signal manipulation which can degrade quality.
• Pro:Idiom™ protected video to ensure copy protection is
maintained all the way to television display. ATSC EXTERNAL
• Simple to install, easy to manage, less than half the size Possible Control Points
and cost of a traditional switched matrix video system PC POS IPAD
using stacked receivers.
• 4K Ultra HD capable. Delivers all DIRECTV™ 4K Ultra SATELLITE SWM
HD programming to 4K Ultra HD capable TV sets

MEDIATUNE Components
COM51 – HD Receiver Blade
• 8 HD DIRECTV™ tuners (upgradeable to 23)
• Pro:Idiom content protection ROUTER
• Up to 6 cards can fit into a COM400 chassis
STANDARD RF DISTRIBUTION
QAM20 – 16 x 256 EdgeQAM HD Channels modulated over QAM
• 16 channel EdgeQAM upgradeable to
as many as 48 channels STATIC QAM STATIC QAM
• Supports 2 HD streams per QAM channel* CHANNEL CHANNEL STATIC QAM
CHANNEL

• 2 QAM20’s can fit into a COM400 TV #1 TV #2 TV #3
DCI401MCS – Pro:Idiom Security Terminator
• Fits under or behind the TV to receive the QAM STATIC QAM STATIC QAM STATIC QAM
broadcast, decode the Pro:Idiom™ copy protection CHANNEL TV’s CHANNEL CHANNEL
and output the video to the TV via HDMI TV #1 #5-68 TV #69 TV #70
• Full resolution digital quality directly to the TV
