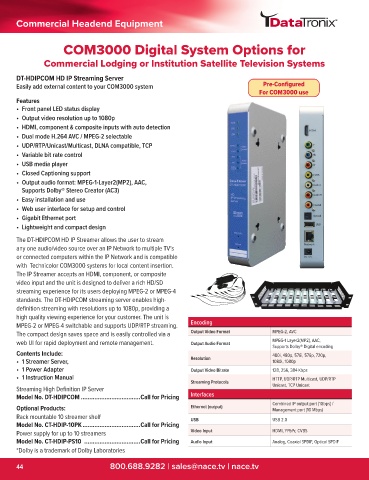

Page 46 - NACE_Catalog_2021

Commercial Headend Equipment

COM3000 Digital System Options for

Commercial Lodging or Institution Satellite Television Systems

DT-HDIPCOM HD IP Streaming Server
Easily add external content to your COM3000 system Pre-Configured
For COM3000 use
Features
• Front panel LED status display
• Output video resolution up to 1080p
• HDMI, component & composite inputs with auto detection
• Dual mode H.264 AVC / MPEG-2 selectable
• UDP/RTP/Unicast/Multicast, DLNA compatible, TCP
• Variable bit rate control
• USB media player
• Closed Captioning support
• Output audio format: MPEG-1-Layer2(MP2), AAC,
Supports Dolby® Stereo Creator (AC3)
• Easy installation and use
• Web user interface for setup and control
• Gigabit Ethernet port
• Lightweight and compact design

The DT-HDIPCOM HD IP Streamer allows the user to stream
any one audio/video source over an IP Network to multiple TV’s
or connected computers within the IP Network and is compatible
with Technicolor COM3000 systems for local content insertion.
The IP Streamer accepts an HDMI, component, or composite
video input and the unit is designed to deliver a rich HD/SD
streaming experience for its users deploying MPEG-2 or MPEG-4
standards. The DT-HDIPCOM streaming server enables high-
definition streaming with resolutions up to 1080p, providing a
high quality viewing experience for your customer. The unit is
MPEG-2 or MPEG-4 switchable and supports UDP/RTP streaming. Encoding
The compact design saves space and is easily controlled via a Output Video Format MPEG-2, AVC
web UI for rapid deployment and remote management. Output Audio Format MPEG-1 Layer2(MP2), AAC,
Supports Dolby® Digital encoding
Contents Include: 480i, 480p, 576i, 576p, 720p,
• 1 Streamer Server, Resolution 1080i, 1080p
• 1 Power Adapter Output Video Bitrate 128, 256, 384 Kbps
• 1 Instruction Manual HTTP, UDP/RTP Multicast, UDP/RTP
Streaming Protocols Unicast, TCP Unicast
Streaming High Definition IP Server
Model No. DT-HDIPCOM ...................................Call for Pricing Interfaces
Combined IP output port (1Gbps) /
Optional Products: Ethernet (output) Management port (10 Mbps)
Rack mountable 10 streamer shelf USB USB 2.0
Model No. CT-HDIP-10PK ..................................Call for Pricing
Power supply for up to 10 streamers Video Input HDMI, YPbPr, CVBS
Model No. CT-HDIP-PS10 .................................Call for Pricing Audio Input Analog, Coaxial SPDIF, Optical SPDIF
*Dolby is a trademark of Dolby Laboratories

44 800.688.9282 | sales@nace.tv | nace.tv
