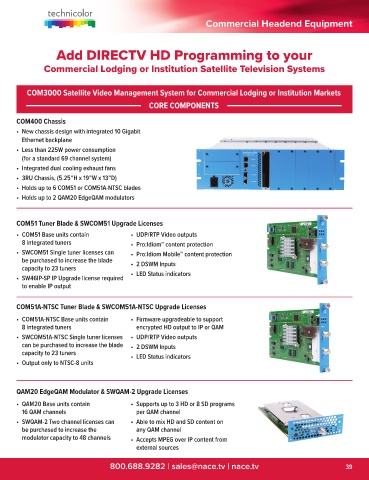

Commercial Headend Equipment
Add DIRECTV HD Programming to your
Commercial Lodging or Institution Satellite Television Systems
COM3000 Satellite Video Management System for Commercial Lodging or Institution Markets
CORE COMPONENTS
COM400 Chassis
• New chassis design with integrated 10 Gigabit
Ethernet backplane
• Less than 225W power consumption
(for a standard 69 channel system)
• Integrated dual cooling exhaust fans
• 3RU Chassis, (5.25”H x 19”W x 13”D)
• Holds up to 6 COM51 or COM51A-NTSC blades
• Holds up to 2 QAM20 EdgeQAM modulators
COM51 Tuner Blade & SWCOM51 Upgrade Licenses
• COM51 Base units contain • UDP/RTP Video outputs
8 integrated tuners • Pro:Idiom™ content protection
• SWCOM51 Single tuner licenses can • Pro:Idiom Mobile™ content protection
be purchased to increase the blade • 2 DSWM Inputs
capacity to 23 tuners
• SW46IP-SP IP Upgrade license required • LED Status indicators
to enable IP output
COM51A-NTSC Tuner Blade & SWCOM51A-NTSC Upgrade Licenses
• COM51A-NTSC Base units contain • Firmware upgradeable to support
8 integrated tuners encrypted HD output to IP or QAM
• SWCOM51A-NTSC Single tuner licenses • UDP/RTP Video outputs
can be purchased to increase the blade • 2 DSWM Inputs
capacity to 23 tuners • LED Status indicators
• Output only to NTSC-8 units
QAM20 EdgeQAM Modulator & SWQAM-2 Upgrade Licenses
• QAM20 Base units contain • Supports up to 3 HD or 8 SD programs
16 QAM channels per QAM channel
• SWQAM-2 Two channel licenses can • Able to mix HD and SD content on
be purchased to increase the any QAM channel
modulator capacity to 48 channels • Accepts MPEG over IP content from
external sources
