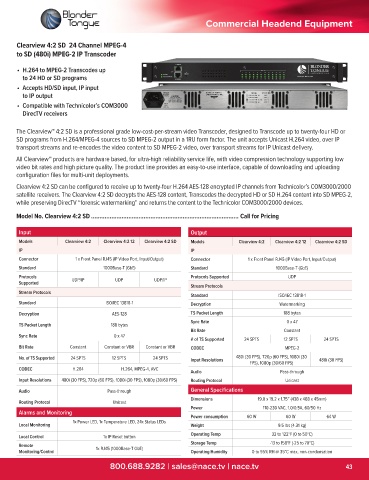

Commercial Headend Equipment

Clearview 4:2 SD 24 Channel MPEG-4
to SD (480i) MPEG-2 IP Transcoder

• H.264 to MPEG-2 Transcodes up
to 24 HD or SD programs
• Accepts HD/SD input, IP input
to IP output
• Compatible with Technicolor’s COM3000
DirecTV receivers

The Clearview™ 4:2 SD is a professional grade low-cost-per-stream video Transcoder, designed to Transcode up to twenty-four HD or
SD programs from H.264/MPEG-4 sources to SD MPEG-2 output in a 1RU form factor. The unit accepts Unicast H.264 video, over IP
transport streams and re-encodes the video content to SD MPEG-2 video, over transport streams for IP Unicast delivery.
All Clearview™ products are hardware based, for ultra-high reliability service life, with video compression technology supporting low
video bit rates and high picture quality. The product line provides an easy-to-use interface, capable of downloading and uploading
configuration files for multi-unit deployments.
Clearview 4:2 SD can be configured to receive up to twenty-four H.264 AES-128 encrypted IP channels from Technicolor’s COM3000/2000
satellite receivers. The Clearview 4:2 SD decrypts the AES-128 content, Transcodes the decrypted HD or SD H.264 content into SD MPEG-2,
while preserving DirecTV “forensic watermarking” and returns the content to the Technicolor COM3000/2000 devices.

Model No. Clearview 4:2 SD ....................................................................................... Call for Pricing

Input Output
Models Clearview 4:2 Clearview 4:2 12 Clearview 4:2 SD Models Clearview 4:2 Clearview 4:2 12 Clearview 4:2 SD
IP IP
Connector 1 x Front Panel RJ45 (IP Video Port, Input/Output) Connector 1 x Front Panel RJ45 (IP Video Port, Input/Output)
Standard 1000Base-T (GbE) Standard 1000Base-T (GbE)
Protocols UDP/IP UDP UDP/IP Protocols Supported UDP
Supported
Stream Protocols
Stream Protocols
Standard ISO/IEC 13818-1
Standard ISO/IEC 13818-1 Decryption Watermarking
Decryption AES-128 TS Packet Length 188 bytes
Sync Rate 0 x 47
TS Packet Length 188 bytes
Bit Rate Constant
Sync Rate 0 x 47
# of TS Supported 24 SPTS 12 SPTS 24 SPTS
Bit Rate Constant Constant or VBR Constant or VBR CODEC MPEG-2
No. of TS Supported 24 SPTS 12 SPTS 24 SPTS Input Resolutions 480i (30 FPS), 720p (60 FPS), 1080i (30 480i (30 FPS)
FPS), 1080p (30/60 FPS)
CODEC H.264 H.264, MPEG-4, AVC
Audio Pass-through
Input Resolutions 480i (30 FPS), 720p (60 FPS), 1080i (30 FPS), 1080p (30/60 FPS) Routing Protocol Unicast
Audio Pass-through General Specifications
Dimensions 19.0 x 19.2 x 1.75” (438 x 488 x 45mm)
Routing Protocol Unicast
Power 110-230 VAC, 1.0/0.5A, 60/50 Hz
Alarms and Monitoring
Power consumption 60 W 60 W 64 W
1x Power LED, 1x Temperature LED, 24x Status LEDs
Local Monitoring Weight 9.5 lbs (4.31 kg)
Local Control 1x IP Reset button Operating Temp 32 to 122°F (0 to 50°C)
Storage Temp -13 to 158°F (-25 to 70°C)
Remote 1x RJ45 (1000Base-T GbE)
Monitoring/Control Operating Humidity 0 to 95% RH @ 35°C max, non-condensation
