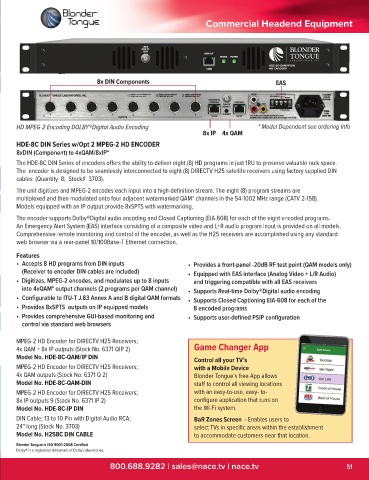

Commercial Headend Equipment

8x DIN Components EAS

HD MPEG-2 Encoding DOLBY®Digital Audio Encoding * Model Dependent see ordering Info
8x IP 4x QAM
HDE-8C DIN Series w/Opt 2 MPEG-2 HD ENCODER
8xDIN (Component) to 4xQAM/8xIP*
The HDE-8C DIN Series of encoders offers the ability to deliver eight (8) HD programs in just 1RU to preserve valuable rack space.
The encoder is designed to be seamlessly interconnected to eight (8) DIRECTV H25 satellite receivers using factory supplied DIN
cables (Quantity 8; Stock# 3703).

The unit digitizes and MPEG-2 encodes each input into a high-definition stream. The eight (8) program streams are
multiplexed and then modulated onto four adjacent watermarked QAM* channels in the 54-1002 MHz range (CATV 2-158).
Models equipped with an IP output provide 8xSPTS with watermarking.
The encoder supports Dolby®Digital audio encoding and Closed Captioning (EIA-608) for each of the eight encoded programs.
An Emergency Alert System (EAS) interface consisting of a composite video and L+R audio program input is provided on all models.
Comprehensive remote monitoring and control of the encoder, as well as the H25 receivers are accomplished using any standard
web browser via a rear-panel 10/100Base-T Ethernet connection.

Features
• Accepts 8 HD programs from DIN inputs • Provides a front-panel -20dB RF test point (QAM models only)
(Receiver to encoder DIN cables are included) • Equipped with EAS interface (Analog Video + L/R Audio)
• Digitizes, MPEG-2 encodes, and modulates up to 8 inputs and triggering compatible with all EAS receivers
into 4xQAM* output channels (2 programs per QAM channel) • Supports Real-time Dolby®Digital audio encoding
• Configurable to ITU-T J.83 Annex A and B digital QAM formats • Supports Closed Captioning EIA-608 for each of the
• Provides 8xSPTS outputs on IP equipped models 8 encoded programs
• Provides comprehensive GUI-based monitoring and • Supports user-defined PSIP configuration
control via standard web browsers

MPEG-2 HD Encoder for DIRECTV H25 Receivers;
4x QAM + 8x IP outputs (Stock No. 6371 QIP 2) Game Changer App
Model No. HDE-8C-QAM/IP DIN Control all your TV’s
MPEG-2 HD Encoder for DIRECTV H25 Receivers; with a Mobile Device
4x QAM outputs (Stock No. 6371 Q 2) Blonder Tongue’s free App allows
Model No. HDE-8C-QAM-DIN staff to control all viewing locations
MPEG-2 HD Encoder for DIRECTV H25 Receivers; with an easy-to-use, easy- to-
8x IP outputs 9 (Stock No. 6371 IP 2) configure application that runs on
Model No. HDE-8C-IP DIN the Wi-Fi system.
DIN Cable; 13 to 10 Pin with Digital Audio RCA; BaR Zones Screen - Enables users to
24" long (Stock No. 3703) select TVs in specific areas within the establishment
Model No. H258C DIN CABLE to accommodate customers near that location.
Blonder Tongue is ISO 9001:2008 Certified
Dolby® is a registered trademark of Dolby Laboratories.
