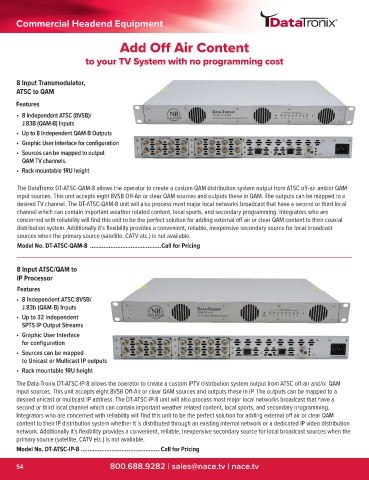

Commercial Headend Equipment
Add Off Air Content
to your TV System with no programming cost
8 Input Transmodulator,
ATSC to QAM
Features
• 8 Independent ATSC (8VSB)/
J.83B (QAM-B) Inputs
• Up to 8 Independent QAM-B Outputs
• Graphic User Interface for configuration
• Sources can be mapped to output
QAM TV channels.
• Rack mountable 1RU height
The DataTronix DT-ATSC-QAM-8 allows the operator to create a custom QAM distribution system output from ATSC off-air and/or QAM
input sources. This unit accepts eight 8VSB Off-Air or clear QAM sources and outputs these in QAM. The outputs can be mapped to a
desired TV channel. The DT-ATSC-QAM-8 unit will also process most major local networks broadcast that have a second or third local
channel which can contain important weather related content, local sports, and secondary programming. Integrators who are
concerned with reliability will find this unit to be the perfect solution for adding external off air or clear QAM content to their coaxial
distribution system. Additionally it’s flexibility provides a convenient, reliable, inexpensive secondary source for local broadcast
sources when the primary source (satellite, CATV etc.) is not available.
Model No. DT-ATSC-QAM-8 ..........................................Call for Pricing
8 Input ATSC/QAM to
IP Processor
Features
• 8 Independent ATSC:8VSB/
J.83b (QAM-B) Inputs
• Up to 32 Independent
SPTS IP Output Streams
• Graphic User Interface
for configuration
• Sources can be mapped
to Unicast or Multicast IP outputs
• Rack mountable 1RU height
The Data-Tronix DT-ATSC-IP-8 allows the operator to create a custom IPTV distribution system output from ATSC off-air and/or QAM
input sources. This unit accepts eight 8VSB Off-Air or clear QAM sources and outputs these in IP. The outputs can be mapped to a
desired unicast or multicast IP address. The DT-ATSC-IP-8 unit will also process most major local networks broadcast that have a
second or third local channel which can contain important weather related content, local sports, and secondary programming.
Integrators who are concerned with reliability will find this unit to be the perfect solution for adding external off air or clear QAM
content to their IP distribution system whether it is distributed through an existing internal network or a dedicated IP video distribution
network. Additionally it’s flexibility provides a convenient, reliable, inexpensive secondary source for local broadcast sources when the
primary source (satellite, CATV etc.) is not available.
Model No. DT-ATSC-IP-8 ...............................................Call for Pricing
