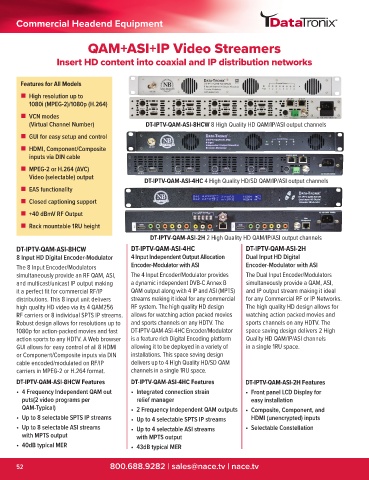

Commercial Headend Equipment

QAM+ASI+IP Video Streamers

Insert HD content into coaxial and IP distribution networks

Features for All Models

n High resolution up to
1080i (MPEG-2)/1080p (H.264)

n CN modes
V
(Virtual Channel Number) DT-IPTV-QAM-ASI-8HCW 8 High Quality HD QAM/IP/ASI output channels
n GUI for easy setup and control
n HDMI, Component/Composite
inputs via DIN cable

n MPEG-2 or H.264 (AVC)
Video (selectable) output
DT-IPTV-QAM-ASI-4HC 4 High Quality HD/SD QAM/IP/ASI output channels
n EAS functionality
n Closed captioning support

n +40 dBmV RF Output
R
n ack mountable 1RU height
DT-IPTV-QAM-ASI-2H 2 High Quality HD QAM/IP/ASI output channels

DT-IPTV-QAM-ASI-8HCW DT-IPTV-QAM-ASI-4HC DT-IPTV-QAM-ASI-2H
8 Input HD Digital Encoder-Modulator 4 Input Independent Output Allocation Dual Input HD Digital
The 8 Input Encoder/Modulators Encoder-Modulator with ASI Encoder-Modulator with ASI
simultaneously provide an RF QAM, ASI, The 4 Input Encoder/Modulator provides The Dual Input Encoder/Modulators
and multicast/unicast IP output making a dynamic independent DVB-C Annex B simultaneously provide a QAM, ASI,
it a perfect fit for commercial RF/IP QAM output along with 4 IP and ASI (MPTS) and IP output stream making it ideal
distributions. This 8 input unit delivers streams making it ideal for any commercial for any Commercial RF or IP Networks.
high quality HD video via its 4 QAM256 RF system. The high quality HD design The high quality HD design allows for
RF carriers or 8 individual SPTS IP streams. allows for watching action packed movies watching action packed movies and
Robust design allows for resolutions up to and sports channels on any HDTV. The sports channels on any HDTV. The
1080p for action-packed movies and fast DT-IPTV-QAM-ASI-4HC Encoder/Modulator space saving design delivers 2 High
action sports to any HDTV. A Web browser is a feature rich Digital Encoding platform Quality HD QAM/IP/ASI channels
GUI allows for easy control of all 8 HDMI allowing it to be deployed in a variety of in a single 1RU space.
or Component/Composite inputs via DIN installations. This space saving design
cable encoded/modulated on RF/IP delivers up to 4 High Quality HD/SD QAM
carriers in MPEG-2 or H.264 format. channels in a single 1RU space.
DT-IPTV-QAM-ASI-8HCW Features DT-IPTV-QAM-ASI-4HC Features DT-IPTV-QAM-ASI-2H Features
• 4 Frequency Independent QAM out • Integrated connection strain • Front panel LCD Display for
puts(2 video programs per relief manager easy installation
QAM-Typical) • 2 Frequency Independent QAM outputs • Composite, Component, and
• Up to 8 selectable SPTS IP streams • Up to 4 selectable SPTS IP streams HDMI (unencrypted) inputs
• Up to 8 selectable ASI streams • Up to 4 selectable ASI streams • Selectable Constellation
with MPTS output with MPTS output
• 40dB typical MER • 43dB typical MER
