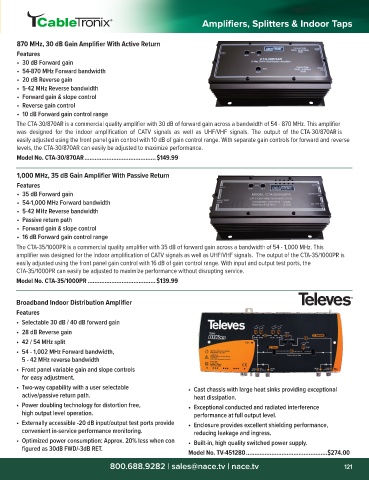

Page 123 - NACE_Catalog_2021

Amplifiers, Splitters & Indoor Taps

870 MHz, 30 dB Gain Amplifier With Active Return
Features
• 30 dB Forward gain
• 54-870 MHz Forward bandwidth
• 20 dB Reverse gain
• 5-42 MHz Reverse bandwidth
• Forward gain & slope control
• Reverse gain control
• 10 dB Forward gain control range
The CTA-30/870AR is a commercial quality amplifier with 30 dB of forward gain across a bandwidth of 54 - 870 MHz. This amplifier
was designed for the indoor amplification of CATV signals as well as UHF/VHF signals. The output of the CTA-30/870AR is
easily adjusted using the front panel gain control with 10 dB of gain control range. With separate gain controls for forward and reverse
levels, the CTA-30/870AR can easily be adjusted to maximize performance.
Model No. CTA-30/870AR ..........................................$149.99

1,000 MHz, 35 dB Gain Amplifier With Passive Return
Features
• 35 dB Forward gain
• 54-1,000 MHz Forward bandwidth
• 5-42 MHz Reverse bandwidth
• Passive return path
• Forward gain & slope control
• 16 dB Forward gain control range
The CTA-35/1000PR is a commercial quality amplifier with 35 dB of forward gain across a bandwidth of 54 - 1,000 MHz. This
amplifier was designed for the indoor amplification of CATV signals as well as UHF/VHF signals. The output of the CTA-35/1000PR is
easily adjusted using the front panel gain control with 16 dB of gain control range. With input and output test ports, the
CTA-35/1000PR can easily be adjusted to maximize performance without disrupting service.
Model No. CTA-35/1000PR ........................................$139.99

Broadband Indoor Distribution Amplifier

Features
• Selectable 30 dB / 40 dB forward gain
• 28 dB Reverse gain
• 42 / 54 MHz split
• 54 - 1,002 MHz Forward bandwidth,
5 - 42 MHz reverse bandwidth
• Front panel variable gain and slope controls
for easy adjustment.
• Two-way capability with a user selectable • Cast chassis with large heat sinks providing exceptional
active/passive return path. heat dissipation.
• Power doubling technology for distortion free, • Exceptional conducted and radiated interference
high output level operation. performance at full output level.
• Externally accessible -20 dB input/output test ports provide • Enclosure provides excellent shielding performance,
convenient in-service performance monitoring. reducing leakage and ingress.
• Optimized power consumption: Approx. 20% less when con • Built-in, high quality switched power supply.
figured as 30dB FWD/-3dB RET.
Model No. TV-451280 ................................................$274.00
