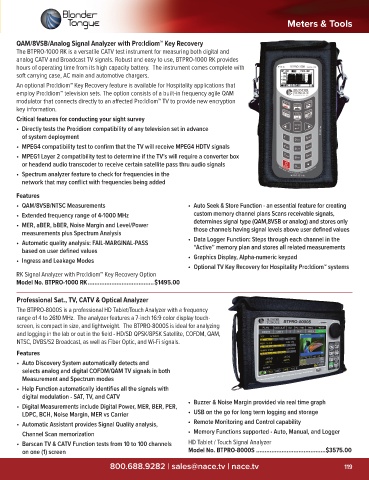

Page 121 - NACE_Catalog_2021

Meters & Tools

QAM/8VSB/Analog Signal Analyzer with Pro:Idiom™ Key Recovery
The BTPRO-1000 RK is a versatile CATV test instrument for measuring both digital and
analog CATV and Broadcast TV signals. Robust and easy to use, BTPRO-1000 RK provides
hours of operating time from its high capacity battery. The instrument comes complete with
soft carrying case, AC main and automotive chargers.
An optional Pro:Idiom™ Key Recovery feature is available for Hospitality applications that
employ Pro:Idiom™ television sets. The option consists of a built-in frequency agile QAM
modulator that connects directly to an affected Pro:Idiom™ TV to provide new encryption
key information.
Critical features for conducting your sight survey
• Directly tests the Pro:idiom compatibility of any television set in advance
of system deployment
• MPEG4 compatibility test to confirm that the TV will receive MPEG4 HDTV signals
• MPEG1 Layer 2 compatibility test to determine if the TV’s will require a converter box
or headend audio transcoder to receive certain satellite pass thru audio signals
• Spectrum analyzer feature to check for frequencies in the
network that may conflict with frequencies being added

Features
• QAM/8VSB/NTSC Measurements • Auto Seek & Store Function - an essential feature for creating
• Extended frequency range of 4-1000 MHz custom memory channel plans Scans receivable signals,
• MER, aBER, bBER, Noise Margin and Level/Power determines signal type (QAM,8VSB or analog) and stores only
measurements plus Spectrum Analysis those channels having signal levels above user defined values
• Automatic quality analysis: FAIL-MARGINAL-PASS • Data Logger Function: Steps through each channel in the
based on user defined values “Active” memory plan and stores all related measurements
• Ingress and Leakage Modes • Graphics Display, Alpha-numeric keypad
• Optional TV Key Recovery for Hospitality Pro:Idiom™ systems
RK Signal Analyzer with Pro:Idiom™ Key Recovery Option
Model No. BTPRO-1000 RK .......................................$1495.00

Professional Sat., TV, CATV & Optical Analyzer
The BTPRO-8000S is a professional HD Tablet/Touch Analyzer with a frequency
range of 4 to 2610 MHz. The analyzer features a 7-inch 16:9 color display touch-
screen, is compact in size, and lightweight. The BTPRO-8000S is ideal for analyzing
and logging in the lab or out in the field - HD/SD QPSK/8PSK Satellite, COFDM, QAM,
NTSC, DVBS/S2 Broadcast, as well as Fiber Optic, and Wi-Fi signals.
Features
• Auto Discovery System automatically detects and
selects analog and digital COFDM/QAM TV signals in both
Measurement and Spectrum modes
• Help Function automatically identifies all the signals with
digital modulation - SAT, TV, and CATV
• Digital Measurements include Digital Power, MER, BER, PER, • Buzzer & Noise Margin provided via real time graph
LDPC, BCH, Noise Margin, MER vs Carrier • USB on the go for long term logging and storage
• Automatic Assistant provides Signal Quality analysis, • Remote Monitoring and Control capability
Channel Scan memorization • Memory Functions supported - Auto, Manual, and Logger
• Barscan TV & CATV Function tests from 10 to 100 channels HD Tablet / Touch Signal Analyzer
on one (1) screen Model No. BTPRO-8000S .........................................$3575.00

800.688.9282 | sales@nace.tv | nace.tv 119
