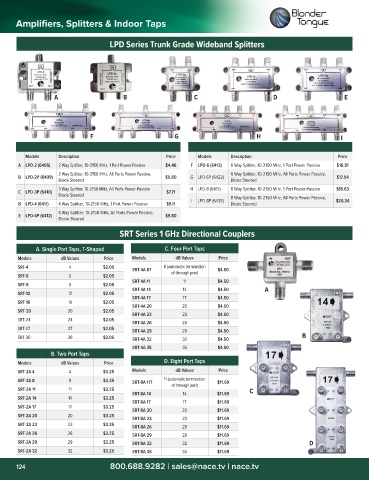

Page 126 - NACE_Catalog_2021

Amplifiers, Splitters & Indoor Taps

LPD Series Trunk Grade Wideband Splitters

A B C D E

F G H I

Models Description Price Models Description Price
A LPD-2 (6405) 2 Way Splitter, 10-2150 MHz, 1 Port Power Passive $4.46 F LPD-6 (6413) 6 Way Splitter, 10-2150 MHz, 1 Port Power Passive $16.81
2 Way Splitter, 10-2150 MHz, All Ports Power Passive, 6 Way Splitter, 10-2150 MHz, All Ports Power Passive,
B LPD-2P (6409) $5.60 G LPD-6P (6422) $17.54
Diode Steered Diode Steered
3 Way Splitter, 10-2150 MHz, All Ports Power Passive H LPD-8 (6415) 8 Way Splitter, 10-2150 MHz, 1 Port Power Passive $19.63
C LPD-3P (6410) $7.71
Diode Steered 8 Way Splitter, 10-2150 MHz, All Ports Power Passive,
B LPD-4 (6411) 4 Way Splitter, 10-2150 MHz, 1 Port Power Passive $9.11 I LPD-8P (6435) Diode Steered $20.34
4 Way Splitter, 10-2150 MHz, All Ports Power Passive,
E LPD-4P (6412) $9.80
Diode Steered
SRT Series 1 GHz Directional Couplers

A. Single Port Taps, T-Shaped C. Four Port Taps
Models dB Values Price Models dB Values Price
SRT-4 4 $2.05 SRT-4A 8T 8 (automatic termination $4.50
SRT-6 6 $2.05 of through port)
SRT-9 9 $2.05 SRT-4A 11 11 $4.50
SRT-4A 14 14 $4.50 A
SRT-12 12 $2.05
SRT-4A 17 17 $4.50
SRT-16 16 $2.05
SRT-4A 20 20 $4.50
SRT-20 20 $2.05
SRT-4A 23 23 $4.50
SRT-24 24 $2.05
SRT-4A 26 26 $4.50
SRT-27 27 $2.05 SRT-4A 29 29 $4.50
SRT-30 30 $2.05 SRT-4A 32 32 $4.50 B
SRT-4A 35 35 $4.50
B. Two Port Taps
Models dB Values Price D. Eight Port Taps
SRT-2A 4 4 $3.25 Models dB Values Price
SRT-2A 8 8 $3.25 SRT-8A 11T 11 (automatic termination $11.69
of through port)
SRT-2A 11 11 $3.25 SRT-8A 14 14 $11.69 C
SRT-2A 14 14 $3.25
SRT-8A 17 17 $11.69
SRT-2A 17 17 $3.25
SRT-8A 20 20 $11.69
SRT-2A 20 20 $3.25
SRT-8A 23 23 $11.69
SRT-2A 23 23 $3.25 SRT-8A 26 26 $11.69
SRT-2A 26 26 $3.25 SRT-8A 29 29 $11.69
SRT-2A 29 29 $3.25 SRT-8A 32 32 $11.69 D
SRT-2A 32 32 $3.25 SRT-8A 35 35 $11.69

124 800.688.9282 | sales@nace.tv | nace.tv
