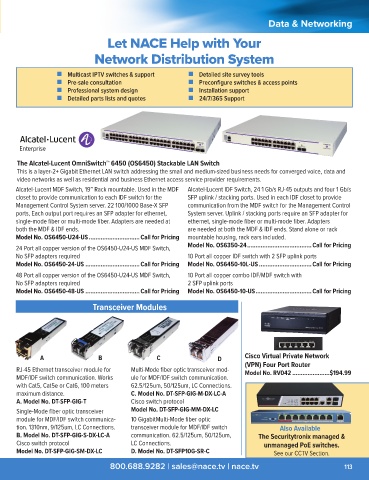

Page 115 - NACE_Catalog_2021

Data & Networking

Let NACE Help with Your

Network Distribution System

n Multicast IPTV switches & support n Detailed site survey tools
n Pre-sale consultation n Preconfigure switches & access points
n Professional system design n Installation support
n Detailed parts lists and quotes n 24/7/365 Support

The Alcatel-Lucent OmniSwitch™ 6450 (OS6450) Stackable LAN Switch
This is a layer-2+ Gigabit Ethernet LAN switch addressing the small and medium-sized business needs for converged voice, data and
video networks as well as residential and business Ethernet access service provider requirements.
Alcatel-Lucent MDF Switch, 19” Rack mountable. Used in the MDF Alcatel-Lucent IDF Switch, 24 1 Gb/s RJ-45 outputs and four 1 Gb/s
closet to provide communication to each IDF switch for the SFP uplink / stacking ports. Used in each IDF closet to provide
Management Control System server. 22 100/1000 Base-X SFP communication from the MDF switch for the Management Control
ports, Each output port requires an SFP adapter for ethernet, System server. Uplink / stacking ports require an SFP adapter for
single-mode fiber or multi-mode fiber. Adapters are needed at ethernet, single-mode fiber or multi-mode fiber. Adapters
both the MDF & IDF ends. are needed at both the MDF & IDF ends. Stand alone or rack
Model No. OS6450-U24-US ..............................Call for Pricing mountable housing, rack ears included.

24 Port all copper version of the OS6450-U24-US MDF Switch, Model No. OS6350-24 ......................................Call for Pricing
No SFP adapters required 10 Port all copper IDF switch with 2 SFP uplink ports
Model No. OS6450-24-US ................................Call for Pricing Model No. OS6450-10L-US ...............................Call for Pricing
48 Port all copper version of the OS6450-U24-US MDF Switch, 10 Port all copper combo IDF/MDF switch with
No SFP adapters required 2 SFP uplink ports
Model No. OS6450-48-US ................................Call for Pricing Model No. OS6450-10-US .................................Call for Pricing

Transceiver Modules

A B C D Cisco Virtual Private Network
RJ-45 Ethernet transceiver module for Multi-Mode fiber optic transceiver mod- (VPN) Four Port Router
Model No. RV042 ......................$194.99
MDF/IDF switch communication. Works ule for MDF/IDF switch communication.
with Cat5, Cat5e or Cat6, 100 meters 62.5/125um, 50/125um, LC Connections.
maximum distance. C. Model No. DT-SFP-GIG-M-DX-LC-A
A. Model No. DT-SFP-GIG-T Cisco switch protocol
Single-Mode fiber optic transceiver Model No. DT-SFP-GIG-MM-DX-LC
module for MDF/IDF switch communica- 10 GigabitMulti-Mode fiber optic
tion. 1310nm, 9/125um, LC Connections. transceiver module for MDF/IDF switch Also Available
B. Model No. DT-SFP-GIG-S-DX-LC-A communication. 62.5/125um, 50/125um, The Securitytronix managed &
Cisco switch protocol LC Connections. unmanaged PoE switches.
Model No. DT-SFP-GIG-SM-DX-LC D. Model No. DT-SFP10G-SR-C See our CCTV Section.
