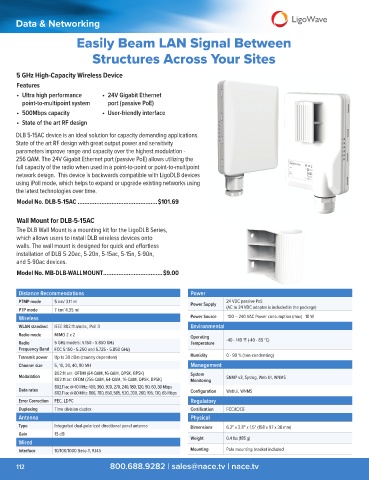

Data & Networking

Easily Beam LAN Signal Between

Structures Across Your Sites

5 GHz High-Capacity Wireless Device
Features
• Ultra high performance • 24V Gigabit Ethernet
point-to-multipoint system port (passive PoE)
• 500Mbps capacity • User-friendly interface
• State of the art RF design
DLB 5-15AC device is an ideal solution for capacity demanding applications.
State of the art RF design with great output power and sensitivity
parameters improve range and capacity over the highest modulation -
256 QAM. The 24V Gigabit Ethernet port (passive PoE) allows utilizing the
full capacity of the radio when used in a point-to-point or point-to-multipoint
network design. This device is backwards compatible with LigoDLB devices
using iPoll mode, which helps to expand or upgrade existing networks using
the latest technologies over time.
Model No. DLB-5-15AC ...............................................$101.69

Wall Mount for DLB-5-15AC
The DLB Wall Mount is a mounting kit for the LigoDLB Series,
which allows users to install DLB wireless devices onto
walls. The wall mount is designed for quick and effortless
installation of DLB 5-20ac, 5-20n, 5-15ac, 5-15n, 5-90n,
and 5-90ac devices.

Model No. MB-DLB-WALLMOUNT ...................................$9.00

Distance Recommendations Power
PTMP mode 5 km/ 3.11 mi Power Supply 24 VDC passive PoE
PTP mode 7 km/ 4.35 mi (AC to 24 VDC adapter is included in the package)
Wireless Power Source 100 – 240 VAC Power consumption (max) 10 W
WLAN standard IEEE 802.11 a/n/ac, iPoll 3 Environmental
Radio mode MIMO 2 x 2 Operating
Radio 5 GHz models: 5.150 - 5.850 GHz Temperature -40 - 149 °F (-40 - 65 °C)
Frequency Band FCC 5.150 - 5.250 and 5.725 - 5.850 GHz)
Transmit power Up to 30 dBm (country dependent) Humidity 0 - 90 % (non-condensing)
Channel size 5, 10, 20, 40, 80 MH Management
802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK) System
Modulation SNMP v3, Syslog, Web UI, WNMS
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) Monitoring
802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
Data rates Configuration WebUI, WNMS
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps
Error Correction FEC, LDPC Regulatory
Duplexing Time division duplex Certification FCC/IC/CE
Antenna Physical
Type Integrated dual-polarized directional panel antenna Dimensions 6.2" x 3.8" x 1.5" (158 x 97 x 38 mm)
Gain 15 dBi Weight 0.4 lbs (185 g)
Wired
Interface 10/100/1000 Base-T, RJ45 Mounting Pole mounting bracket included
