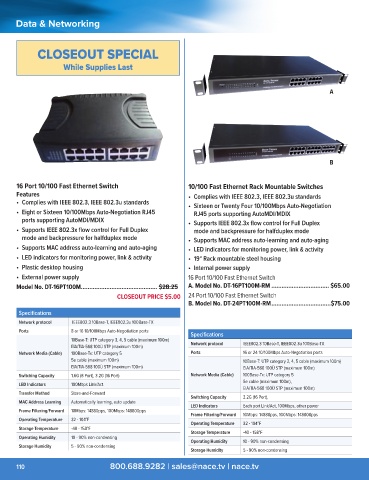

Page 112 - NACE_Catalog_2021

Data & Networking

CLOSEOUT SPECIAL

While Supplies Last

A

B

16 Port 10/100 Fast Ethernet Switch 10/100 Fast Ethernet Rack Mountable Switches
Features • Complies with IEEE 802.3, IEEE 802.3u standards
• Complies with IEEE 802.3, IEEE 802.3u standards • Sixteen or Twenty Four 10/100Mbps Auto-Negotiation
• Eight or Sixteen 10/100Mbps Auto-Negotiation RJ45 RJ45 ports supporting Auto MDI/MDIX
ports supporting Auto MDI/MDIX • Supports IEEE 802.3x flow control for Full Duplex
• Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for half duplex mode
mode and backpressure for half duplex mode • Supports MAC address auto-learning and auto-aging
• Supports MAC address auto-learning and auto-aging • LED indicators for monitoring power, link & activity
• LED indicators for monitoring power, link & activity • 19" Rack mountable steel housing
• Plastic desktop housing • Internal power supply
• External power supply 16 Port 10/100 Fast Ethernet Switch
Model No. DT-16PT100M............................................. $28.25 A. Model No. DT-16PT100M-RM .................................. $65.00
CLOSEOUT PRICE $5.00 24 Port 10/100 Fast Ethernet Switch
B. Model No. DT-24PT100M-RM ...................................$75.00
Specifications
Network protocol IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Ports 8 or 16 10/100Mbps Auto-Negotiation ports Specifications
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m) Network protocol IEEE802.3 10Base-T, IEEE802.3u 100Base-TX
Network Media (Cable) 100Base-Tx: UTP category 5 Ports 16 or 24 10/100Mbps Auto-Negotiation ports
5e cable (maximum 100m) 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m) EIA/TIA-568 100Ù STP (maximum 100m)
Switching Capacity 1.6G (8 Port), 3.2G (16 Port) Network Media (Cable) 100Base-Tx: UTP category 5
5e cable (maximum 100m),
LED Indicators 100Mbps Link/Act EIA/TIA-568 100Ù STP (maximum 100m)
Transfer Method Store-and-Forward
Switching Capacity 3.2G (16 Port),
MAC Address Learning Automatically learning, auto update
LED Indicators Each port Link/Act, 100Mbps, other power
Frame Filtering/Forward 10Mbps: 14880pps, 100Mbps: 148800pps
Frame Filtering/Forward 10Mbps: 14880pps, 100Mbps: 148800pps
Operating Temperature 32 - 104°F
Operating Temperature 32 - 104°F
Storage Temperature -40 - 158°F
Storage Temperature -40 - 158°F
Operating Humidity 10 - 90% non-condensing
Operating Humidity 10 - 90% non-condensing
Storage Humidity 5 - 90% non-condensing
Storage Humidity 5 - 90% non-condensing
