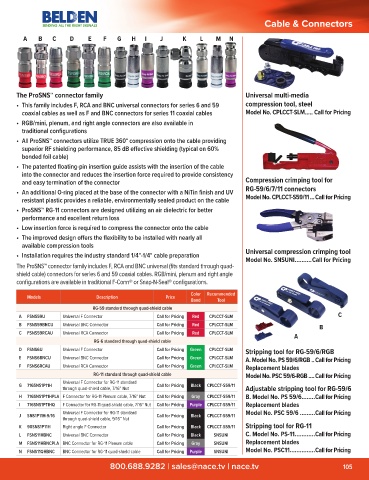

Page 107 - NACE_Catalog_2021

Cable & Connectors

A B C D E F G H I J K L M N

The ProSNS™ connector family Universal multi-media
• This family includes F, RCA and BNC universal connectors for series 6 and 59 compression tool, steel
coaxial cables as well as F and BNC connectors for series 11 coaxial cables Model No. CPLCCT-SLM ..... Call for Pricing
• RGB/mini, plenum, and right angle connectors are also available in
traditional configurations
• All ProSNS™ connectors utilize TRUE 360° compression onto the cable providing
superior RF shielding performance, 85 dB effective shielding (typical on 60%
bonded foil cable)
• The patented floating-pin insertion guide assists with the insertion of the cable
into the connector and reduces the insertion force required to provide consistency
and easy termination of the connector Compression crimping tool for
• An additional O-ring placed at the base of the connector with a NiTin finish and UV RG-59/6/7/11 connectors
resistant plastic provides a reliable, environmentally sealed product on the cable Model No. CPLCCT-S59/11 ...Call for Pricing
• ProSNS™ RG-11 connectors are designed utilizing an air dielectric for better
performance and excellent return loss
• Low insertion force is required to compress the connector onto the cable
• The improved design offers the flexibility to be installed with nearly all
available compression tools
• Installation requires the industry standard 1/4"-1/4" cable preparation Universal compression crimping tool
Model No. SNSUNI ..........Call for Pricing
The ProSNS™ connector family includes F, RCA and BNC universal (fits standard through quad-
shield cable) connectors for series 6 and 59 coaxial cables. RGB/mini, plenum and right angle
configurations are available in traditional F-Conn® or Snap-N-Seal® configurations.

Color Recommended
Models Description Price
Band Tool
RG-59 standard through quad-shield cable
A FSNS59U Universal F Connector Call for Pricing Red CPLCCT-SLM C
B FSNS59BNCU Universal BNC Connector Call for Pricing Red CPLCCT-SLM B
C FSNS59RCAU Universal RCA Connector Call for Pricing Red CPLCCT-SLM A
RG-6 standard through quad-shield cable
D FSNS6U Universal F Connector Call for Pricing Green CPLCCT-SLM Stripping tool for RG-59/6/RGB
E FSNS6BNCU Universal BNC Connector Call for Pricing Green CPLCCT-SLM A. Model No. PS 59/6/RGB ..Call for Pricing
F FSNS6RCAU Universal RCA Connector Call for Pricing Green CPLCCT-SLM Replacement blades
RG-11 standard through quad-shield cable Model No. PSC 59/6-RGB ....Call for Pricing
Universal F Connector for RG-11 standard
G 716SNS1P11H Call for Pricing Black CPLCCT-S59/11
through quad-shield cable, 7/16” Nut Adjustable stripping tool for RG-59/6
H 716SNS1P11HPLA F Connector for RG-11 Plenum cable, 7/16" Nut Call for Pricing Gray CPLCCT-S59/11 B. Model No. PS 59/6........Call for Pricing
I 716SNS1P11HQ F Connector for RG-11 quad-shield cable, 7/16" Nut Call for Pricing Purple CPLCCT-S59/11 Replacement blades
Universal F Connector for RG-11 standard Model No. PSC 59/6 .........Call for Pricing
J SNS1P11H-9/16 Call for Pricing Black CPLCCT-S59/11
through quad-shield cable, 9/16” Nut
K 90SNS1P11H Right angle F Connector Call for Pricing Black CPLCCT-S59/11 Stripping tool for RG-11
L FSNS11HBNC Universal BNC Connector Call for Pricing Black SNSUNI C. Model No. PS-11 ............Call for Pricing
M FSNS11HBNCPLA BNC Connector for RG-11 Plenum cable Call for Pricing Gray SNSUNI Replacement blades
N FSNS11QHBNC BNC Connector for RG-11 quad-shield cable Call for Pricing Purple SNSUNI Model No. PSC11...............Call for Pricing
