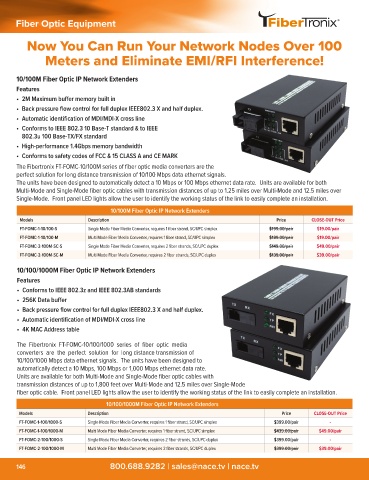

Page 148 - NACE_Catalog_2021

Fiber Optic Equipment

Now You Can Run Your Network Nodes Over 100

Meters and Eliminate EMI/RFI Interference!

10/100M Fiber Optic IP Network Extenders
Features
• 2M Maximum buffer memory built in
• Back pressure flow control for full duplex IEEE802.3 X and half duplex.
• Automatic identification of MDI/MDI-X cross line
• Conforms to IEEE 802.3 10 Base-T standard & to IEEE
802.3u 100 Base-TX/FX standard
• High-performance 1.4Gbps memory bandwidth
• Conforms to safety codes of FCC & 15 CLASS A and CE MARK
The Fibertronix FT-FOMC-10/100M series of fiber optic media converters are the
perfect solution for long distance transmission of 10/100 Mbps data ethernet signals.
The units have been designed to automatically detect a 10 Mbps or 100 Mbps ethernet data rate. Units are available for both
Multi-Mode and Single-Mode fiber optic cables with transmission distances of up to 1.25 miles over Multi-Mode and 12.5 miles over
Single-Mode. Front panel LED lights allow the user to identify the working status of the link to easily complete an installation.
10/100M Fiber Optic IP Network Extenders
Models Description Price CLOSE-OUT Price
FT-FOMC-1-10/100-S Single Mode Fiber Media Converter, requires 1 fiber strand, SC/UPC simplex $199.00/pair $19.00/pair
FT-FOMC-1-10/100-M Multi Mode Fiber Media Converter, requires 1 fiber strand, SC/UPC simplex $189.00/pair $19.00/pair
FT-FOMC-2-100M-SC-S Single Mode Fiber Media Converter, requires 2 fiber strands, SC/UPC duplex $149.00/pair $49.00/pair
FT-FOMC-2-100M-SC-M Multi Mode Fiber Media Converter, requires 2 fiber strands, SC/UPC duplex $139.00/pair $39.00/pair

10/100/1000M Fiber Optic IP Network Extenders
Features
• Conforms to IEEE 802.3z and IEEE 802.3AB standards
• 256K Data buffer
• Back pressure flow control for full duplex IEEE802.3 X and half duplex.
• Automatic identification of MDI/MDI-X cross line
• 4K MAC Address table

The Fibertronix FT-FOMC-10/100/1000 series of fiber optic media
converters are the perfect solution for long distance transmission of
10/100/1000 Mbps data ethernet signals. The units have been designed to
automatically detect a 10 Mbps, 100 Mbps or 1,000 Mbps ethernet data rate.
Units are available for both Multi-Mode and Single-Mode fiber optic cables with
transmission distances of up to 1,800 feet over Multi-Mode and 12.5 miles over Single-Mode
fiber optic cable. Front panel LED lights allow the user to identify the working status of the link to easily complete an installation.

10/100/1000M Fiber Optic IP Network Extenders
Models Description Price CLOSE-OUT Price
FT-FOMC-1-100/1000-S Single Mode Fiber Media Converter, requires 1 fiber strand, SC/UPC simplex $399.00/pair -
FT-FOMC-1-100/1000-M Multi Mode Fiber Media Converter, requires 1 fiber strand, SC/UPC simplex $439.00/pair $49.00/pair
FT-FOMC-2-100/1000-S Single Mode Fiber Media Converter, requires 2 fiber strands, SC/UPC duplex $399.00/pair -
FT-FOMC-2-100/1000-M Multi Mode Fiber Media Converter, requires 2 fiber strands, SC/UPC duplex $399.00/pair $39.00/pair

146 800.688.9282 | sales@nace.tv | nace.tv
