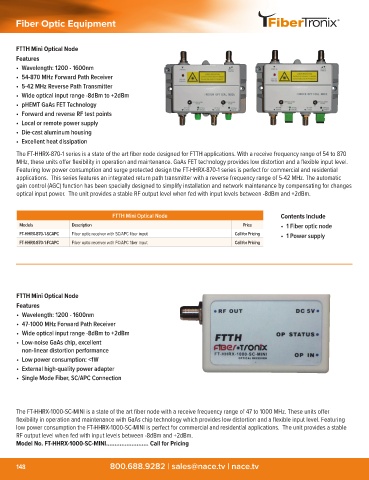

Page 150 - NACE_Catalog_2021

Fiber Optic Equipment

FTTH Mini Optical Node
Features
• Wavelength: 1200 - 1600nm
• 54-870 MHz Forward Path Receiver
• 5-42 MHz Reverse Path Transmitter
• Wide optical input range -8dBm to +2dBm
• pHEMT GaAs FET Technology
• Forward and reverse RF test points
• Local or remote power supply
• Die-cast aluminum housing
• Excellent heat dissipation
The FT-HHRX-870-1 series is a state of the art fiber node designed for FTTH applications. With a receive frequency range of 54 to 870
MHz, these units offer flexibility in operation and maintenance. GaAs FET technology provides low distortion and a flexible input level.
Featuring low power consumption and surge protected design the FT-HHRX-870-1 series is perfect for commercial and residential
applications. This series features an integrated return path transmitter with a reverse frequency range of 5-42 MHz. The automatic
gain control (AGC) function has been specially designed to simplify installation and network maintenance by compensating for changes
optical input power. The unit provides a stable RF output level when fed with input levels between -8dBm and +2dBm.

FTTH Mini Optical Node Contents Include
Models Description Price • 1 Fiber optic node
FT-HHRX-870-1-SCAPC Fiber optic receiver with SC/APC fiber input Call for Pricing • 1 Power supply
FT-HHRX-870-1-FCAPC Fiber optic receiver with FC/APC fiber input Call for Pricing

FTTH Mini Optical Node
Features
• Wavelength: 1200 - 1600nm
• 47-1000 MHz Forward Path Receiver
• Wide optical input range -8dBm to +2dBm
• Low-noise GaAs chip, excellent
non-linear distortion performance
• Low power consumption: <1W
• External high-quality power adapter
• Single Mode Fiber, SC/APC Connection

The FT-HHRX-1000-SC-MINI is a state of the art fiber node with a receive frequency range of 47 to 1000 MHz. These units offer
flexibility in operation and maintenance with GaAs chip technology which provides low distortion and a flexible input level. Featuring
low power consumption the FT-HHRX-1000-SC-MINI is perfect for commercial and residential applications. The unit provides a stable
RF output level when fed with input levels between -8dBm and +2dBm.
Model No. FT-HHRX-1000-SC-MINI......................... Call for Pricing
