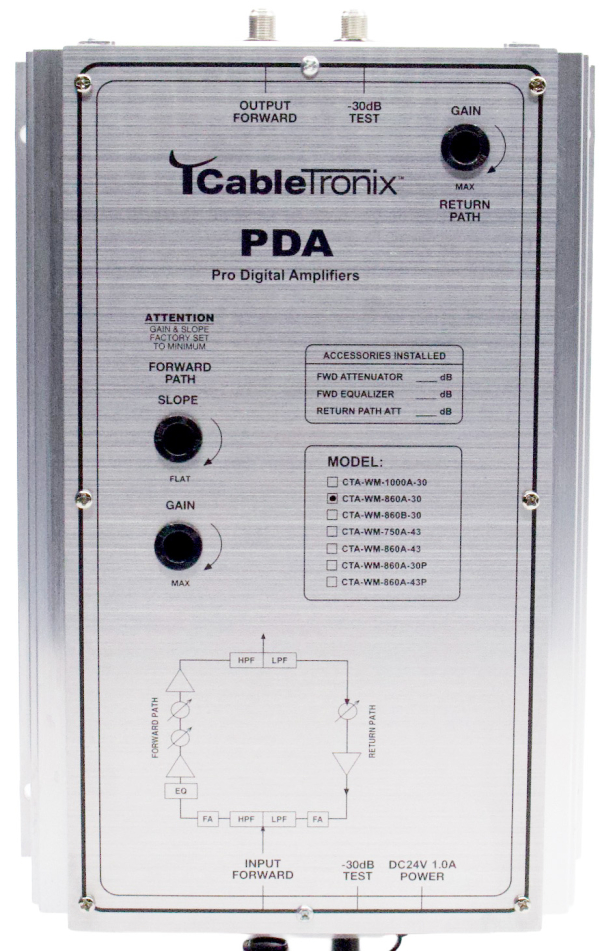

Product ID: CTA-WM-860A-30P
Supplier: CableTronix
Description: Power-Doubling Broadband Distribution Amplifier – Indoor, +30 dB Gain, 49–860 MHz, Two-Way, 5–36 MHz Return Path
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-860A-30P is a medium-gain power-doubling amplifier optimized for moderate cable runs and commercial RF systems operating up to 860 MHz. With a 32 dB minimum gain and a robust power-doubling hybrid output stage, it ensures clean, distortion-free performance ideal for SMATV, hospitality networks, and CATV distribution. The active 5–36 MHz return path supports DOCSIS upstream signaling and remote monitoring applications.
Key Features
Description: Power-Doubling Broadband Distribution Amplifier – Indoor, +30 dB Gain, 49–860 MHz, Two-Way, 5–36 MHz Return Path
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-860A-30P is a medium-gain power-doubling amplifier optimized for moderate cable runs and commercial RF systems operating up to 860 MHz. With a 32 dB minimum gain and a robust power-doubling hybrid output stage, it ensures clean, distortion-free performance ideal for SMATV, hospitality networks, and CATV distribution. The active 5–36 MHz return path supports DOCSIS upstream signaling and remote monitoring applications.
Key Features
- 49–860 MHz forward bandwidth – supports wide-range CATV/SMATV channel plans, including digital QAM, analog channels, and broadband video services
- Active 5–36 MHz return path – enables DOCSIS upstream communication, interactive TV services, remote monitoring, and system control data
- 32 dB minimum gain – provides strong, stable amplification ideal for medium-length RF distribution networks
- Power-doubling hybrid output stage – delivers enhanced linearity, higher output capability, and reduced distortion for superior signal quality
- 10 dB adjustable slope control – compensates for high-frequency tilt caused by cable attenuation over long runs
- 12 dB forward gain control – allows precise onsite level adjustment to balance various cable lengths and system loading
- ±1 dB gain flatness – maintains consistent signal levels across the entire frequency range for reliable multi-channel performance
- Low noise figure (8.0 dB max) – preserves signal integrity and reduces noise contribution in complex RF systems
- –30 dB test port – offers quick, non-intrusive access for signal monitoring and diagnostics without disrupting service
- Excellent distortion performance – CTB: –64 dB, CSO: –66 dB, XMOD: –62 dB ensures clean video, stable digital carriers, and superior system linearity
- Rugged aluminum enclosure with wide operating range – reliable operation from –4°F to 140°F
- External 24 VDC power adapter included – simplifies installation and provides consistent, reliable power delivery
