Product ID: CTA-WM-860A-43P
Supplier: CableTronix
Description: Power-Doubling Broadband Distribution Amplifier – Indoor, +43 dB Gain, 49–860 MHz, Two-Way, 5–36 MHz Return Path
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.

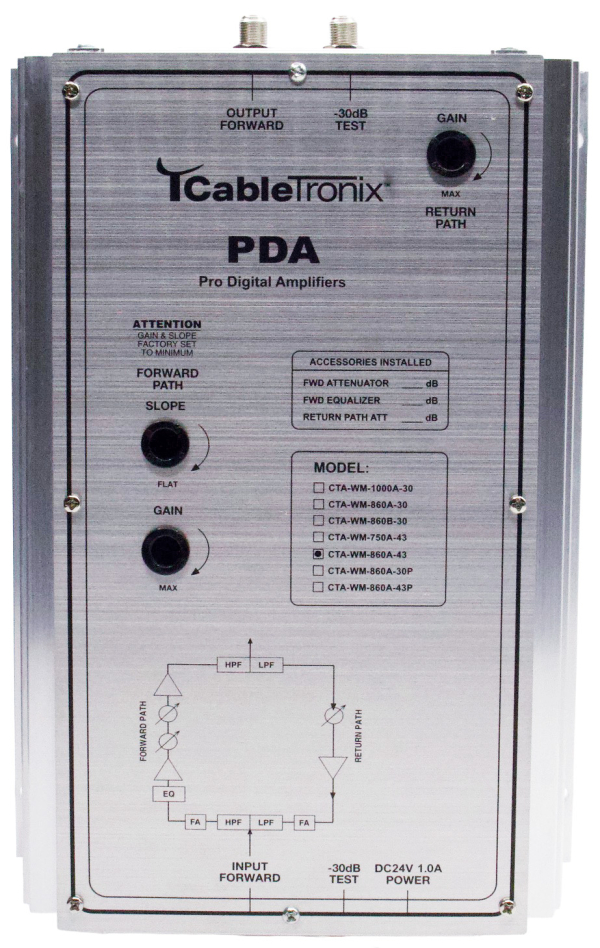

The CTA-WM-860A-43P is a high-output power-doubling amplifier designed for large RF distribution networks and long cable runs. With a 49–860 MHz forward bandwidth and a minimum 43 dB gain, it provides exceptional signal reinforcement and headroom for demanding SMATV and CATV applications. The active 5–36 MHz return path supports upstream DOCSIS communication and system control. Power-doubling hybrid technology ensures superior linearity, reduced distortion, and improved overall system performance.
Key Features
Description: Power-Doubling Broadband Distribution Amplifier – Indoor, +43 dB Gain, 49–860 MHz, Two-Way, 5–36 MHz Return Path
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-860A-43P is a high-output power-doubling amplifier designed for large RF distribution networks and long cable runs. With a 49–860 MHz forward bandwidth and a minimum 43 dB gain, it provides exceptional signal reinforcement and headroom for demanding SMATV and CATV applications. The active 5–36 MHz return path supports upstream DOCSIS communication and system control. Power-doubling hybrid technology ensures superior linearity, reduced distortion, and improved overall system performance.
Key Features
- 49–860 MHz forward bandwidth – supports extended-band CATV/SMATV systems, digital carriers, and analog channels
- Active 5–36 MHz return path – enables DOCSIS upstream, interactive services, and system control signaling
- +43 dB high-output gain – provides robust signal reinforcement suitable for long cable runs and large RF networks
- Power-doubling hybrid output stage – delivers superior linearity, reduced distortion, and higher output capability
- 10 dB adjustable slope control – compensates for high-frequency roll-off over long coaxial runs
- 12 dB forward gain control – allows fine-tuning of system signal levels during installation or maintenance
- ±1 dB gain flatness across band – ensures consistent performance across all channels
- Low noise figure (8.0 dB max) – maintains clean, high-quality signal amplification
- –30 dB test port – provides quick, non-intrusive access for signal monitoring and diagnostics
- Excellent distortion performance – CTB: –64 dB, CSO: –66 dB, XMOD: –62 dB for high-quality video and digital performance
- Rugged aluminum enclosure with wide operating range – reliable operation from –4°F to 140°F
- External 24 VDC power supply included – supports flexible installation environments
