Product ID: CT-SAMM-V2
Supplier: CableTronix
Description: Commercial Grade, Agile Micro Modulator

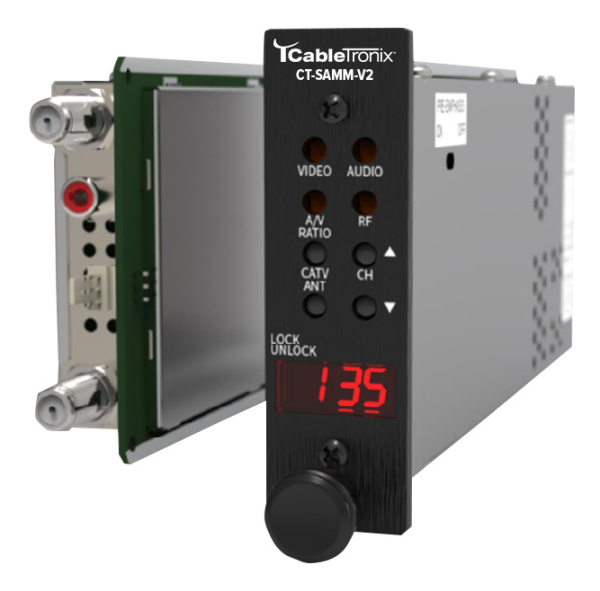

The CT-SAMM-V2 is a professional quality fully agile micro-modulator providing an audio and video modulated RF carrier from 54-864 MHz on any CATV channel from 2 to 135, and UHF channel from 14 to 78. Any standard video source can be used, including satellite receivers, demodulators, VCRs, laser/DVD players, and TV/security cameras. The CT-SAMM-V2 employs highly stable synthesized frequency control. Setup and tuning is easy taking advantage of the unit’s front panel access to all level controls and indicators. Channel frequency information with FCC offsets is programmed into each unit at the factory. Nonvolatile memory maintains channel selection in the event of power loss. The CT-SAMM-V2 meets or exceeds government regulatory requirements, including FCC group delay pre-distortion for color transmission, and FCC Docket 21006 aeronautical offset requirements.
Description: Commercial Grade, Agile Micro Modulator
The CT-SAMM-V2 is a professional quality fully agile micro-modulator providing an audio and video modulated RF carrier from 54-864 MHz on any CATV channel from 2 to 135, and UHF channel from 14 to 78. Any standard video source can be used, including satellite receivers, demodulators, VCRs, laser/DVD players, and TV/security cameras. The CT-SAMM-V2 employs highly stable synthesized frequency control. Setup and tuning is easy taking advantage of the unit’s front panel access to all level controls and indicators. Channel frequency information with FCC offsets is programmed into each unit at the factory. Nonvolatile memory maintains channel selection in the event of power loss. The CT-SAMM-V2 meets or exceeds government regulatory requirements, including FCC group delay pre-distortion for color transmission, and FCC Docket 21006 aeronautical offset requirements.
- Output frequency of (54-864)Mhz
- Excellent broadband noise performance at (– 78)dBc
- Compatible with Cabletronix CTRC-12 chassis and BT MIRC-4D chassis/power supply
- Compatible with Cabletronix CTPS-12 chassis-based multi-feed power supply
Spec Sheet
Instruction Manual
Login For Prices
