Supplier: DataTronix

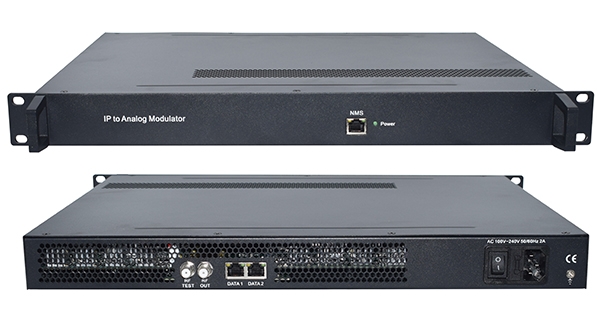

Description: 32 Channel IP/HDMI To Analog Modulator
The DataTronix DT-NTSC-32 takes digital video signals from an IP source, such as a COM3000 or DT-ATSC-IP-8V2, and converts the IP source to analog modulated NTSC TV channels. This unit can output up to 32 NTSC channels. It solves a common problem for senior living housing and any other commercial properties that may still have some analog TVs on-site, or digital TV’s not capable of decoding certain video formats. It can receive and decode multiple HD or SD IP video streams in either MPEG-2, MPEG-4, H.264, or H.265 formats. This modulator supports numerous audio formats that can be decoded and reformatted for NTSC analog modulated TV channels.

This unit is perfect for the following use cases:

• Low-income properties wanting free off-airTV service in NTSC analog can use the DataTronix DT-ATSC-IP-8V2 to receive and convert the off-air signals to IP, then use the DT-NTSC-32 to modulate them onto NTSC analog TV channels.


• Properties receiving satellite TV with a DIRECTV COM3000 can connect the DT-NTSC-32 to modulate 32 satellite channels onto NTSC analog TV channels to support legacy televisions, gym equipment, or other non-Pro:Idiom displays.

Key Features

• 2 Gigabit Ethernet ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each Gigabit Ethernet input
• Supports MPEG-2, MPEG-4, H.264 or H.265 Transport Stream (TS) Decapsulation
• Processing of up to 32 IP multicast groups from a Gigabit Ethernet MPEG TS into up to 32 standard NTSC TV programs.
• Supports Web-based Network management which allows for remote tuning of source streams and NTSC channel outputs
