Supplier: DataTronix
Description: 32 Channel IP/HDMI To Analog Modulator
The DataTronix DT-NTSC-32 takes digital video signals from an IP source, such as a COM3000 or DT-ATSC-IP-8V2, and converts the IP source to analog modulated NTSC TV channels. This unit can output up to 32 NTSC channels. It solves a common problem for senior living housing and any other commercial properties that may still have some analog TVs on-site, or digital TV’s not capable of decoding certain video formats. It can receive and decode multiple HD or SD IP video streams in either MPEG-2, MPEG-4, H.264, or H.265 formats. This modulator supports numerous audio formats that can be decoded and reformatted for NTSC analog modulated TV channels.

This unit is perfect for the following use cases:

• Low-income properties wanting free off-airTV service in NTSC analog can use the DataTronix DT-ATSC-IP-8V2 to receive and convert the off-air signals to IP, then use the DT-NTSC-32 to modulate them onto NTSC analog TV channels.


• Properties receiving satellite TV with a DIRECTV COM3000 can connect the DT-NTSC-32 to modulate 32 satellite channels onto NTSC analog TV channels to support legacy televisions, gym equipment, or other non-Pro:Idiom displays.

Key Features

• 2 Gigabit Ethernet ports (max 64 IP input over MPTS/SPTS), Max 840Mbps for each Gigabit Ethernet input
• Supports MPEG-2, MPEG-4, H.264 or H.265 Transport Stream (TS) Decapsulation
• Processing of up to 32 IP multicast groups from a Gigabit Ethernet MPEG TS into up to 32 standard NTSC TV programs.
• Supports Web-based Network management which allows for remote tuning of source streams and NTSC channel outputs

Supplier: DataTronix
Description: 12 Source SD RCA to QAM Encoder Modulator

The DataTronix 12-source Standard Definition RCA to QAM Encoder Modulator converts up to twelve standard-definition composite video sources into four digital QAM channels for distribution over a coaxial cable network. Designed for professional video distribution systems, this rack-mount encoder accepts 12 RCA composite video inputs with stereo audio and encodes them using MPEG-2 video compression before modulating them into four agile QAM RF channels.

With 12 RCA composite video inputs, the unit accepts video from sources such as media players, security cameras, satellite receivers, or digital signage players. These inputs are encoded using MPEG-2 video compression and modulated into four configurable QAM digital channels, which can then be distributed through a coaxial network to televisions with integrated QAM tuners. This makes the unit well suited for TV distribution systems that need to support older SD digital televisions or cannot distribute HD content due to rights limitations.

The compact 1RU rack-mount design makes installation simple, while the web-based management interface allows easy configuration of input channels, RF frequencies, and system settings from any connected computer.

Key Features:

• 12 RCA composite video inputs with stereo audio
• Converts 12 video sources to 4 digital QAM channels
• MPEG-2 video encoding for SD video sources
• Supports MPEG-1, AAC-LC, HE-AAC, and AC3 audio formats
• RF output range 54–864 MHz
• Supports 64QAM and 256QAM modulation
• Web-based configuration and monitoring interface
• High-quality digital RF output: 50+ dBmV
• Typical MER Levels: 38+ dB
• Standard 1RU rack-mount chassis

Supplier: Netgear
Description: Eight port ethernet switch, 10-100-1000, managed or unmanaged, non-PoE, external power adapter, desktop housing, perfect for use with COM2000 systems using the NTSC-8 units or CT-ATSCQAM8-IP tuners.

Supplier: Kramer | ZeeVee
Description: Kramer HDb2880i HD Video Encoder / QAM Modulator – 8 HDMI Inputs

The Kramer HDb2880i is a high-density HD video encoder and QAM/DVB modulator built for professional AV distribution environments that require more channels and greater flexibility. With eight HDMI inputs and simultaneous RF and IP output, it’s an ideal solution for larger headend systems and multi-channel deployments.

Designed for hospitality, healthcare, campus, and commercial applications, the HDb2880i converts HDMI sources into QAM, DVB-T, or DVB-C channels while also delivering UDP IP streams, enabling seamless integration across both coax and IP-based networks.

Key Features

• (8) HDMI inputs supporting up to 1080p/1080i with embedded digital audio
• Simultaneous RF (QAM/DVB-T/DVB-C) and UDP IP streaming output
• Supports MPEG-2 and H.264 encoding Distributes HD video over both coax and IP infrastructures
• Rackmount-ready design with included rack ears and power supply
• Web-based interface for easy setup, control, and management

Applications

• High-channel-count headend systems
• Hotels, hospitals, and multi-dwelling units
• Digital signage and campus-wide video distribution
• Hybrid RF/IP video delivery environments

What’s Included

• HDb2880i Modulator
• Rack mount ears
• Power supply

Important Notes

• HDMI cables sold separately
• Not compatible with closed captioning

Supplier: Vantiva

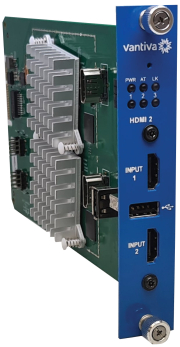

Description: Add important local content (property info, entertainment, etc.) via HDMI to IP conversion, and combine your on-property content with the ease of use, remote access, and distribution features of the COM3000 system.

Three inputs of locally sourced content via (2) HDMI inputs or a single USB allow for the combination of content from multiple sources into one easy-to-set-up device. MPEG-2, H.264 (AVC), or H.265 (HEVC), and Dolby Digital Audio (AC3), AAC, and MP3 support (PCM) enable the flexibility to receive a wide range of content from various audio and video formats. (HDCP protected content not supported).

The HDMI2 can operate independently of other sources or can be set up and managed by the COM51 interface, with the ability to combine content from this device with content from other COM3000 sources, if desired.

• Each HDMI2 dual-channel blade requires (1) Vantiva QAM modulation stream
• Unit compatible with COM2000 chassis, is NOT compatible with COM1000 chassis
• COM1000 and COM2000 tuner blades (COM24 and/or COM46) do not have interface tosupport this product.

Supplier: Technicolor
Description: For properties that cannot make a complete conversion to digital content, the NTSC-8 allows for the COM51 content to be output both in digital format to the QAM as well as an IP output to the NTSC-8 which will provide a NTSC formatted analog output. This replaces any requirement for a stacked receiver solution using mini-mods to duplicate channels for fitness centers or other TV’s unable to support HD or SD digital content. The NTSC-8 is completely agile for each of the 8 outputs allowing for flexibility in RF plant management.

Supplier: Vantiva
Description: The Vantiva QAM4 is designed specifically for the COM3000, a digital headend solution that supports commercial environment DIRECTV satellite services. The QAM4 fits into the COM400 and/or COM421 chassis, sold separately. The QAM4 is capable of (48) QAM channel outputs incrementally licensed from (4) (product default) to (48) QAM channels in groups of (2) channels per SWQAM-2 software upgrade, sold separately. This allows the customer to maximize the efficiency of the needed QAM for any specific application and assists in keeping installation costs in check. External content sources such as outboard transcoders and video encoders can be streamed to the QAM20 or QAM4 modulator.

• Frequency agility of 54 to 1,002 MHZ, +30dBmV
• Supports J.83 Annex B QAM output
• For local content insertion into the COM3000, review item DT-HDIPSSL
• Accepts IP input from either Vantiva COM46, COM50, COM51, or COM51D insert blades
• Requires SWQAM-2 for 2 QAM increment upgrades, sold separately
• Each QAM is individually agile and able to output any channel in a 128-channel range

Supplier: Technicolor
Description: IP Output upgrade for COM3000 COM51 blade or COM2000 COM46 blade, 1 required per blade to enable blades to provide IP streaming output.

Supplier: Technicolor
Description: Single tuner upgrade license for COM3000 series COM51 blades. Up to 15 licenses can be added to the 8 tuner COM51 blade to expand it to a maximum of 23 tuners.

Supplier: Technicolor
Description: Single tuner upgrade license for COM3000 series COM51A-NTSC blades. Up to 15 licenses can be added to the 8 tuner COM5151A-NTSC blade to expand it to a maximum of 23 tuners.
