Supplier: Kramer | ZeeVee

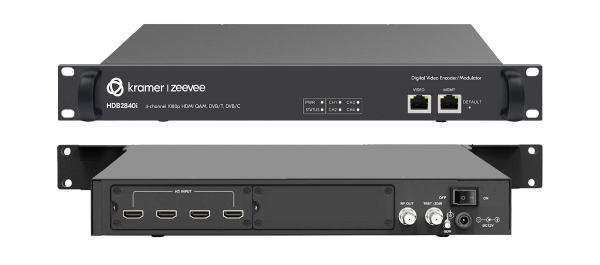

Description: Kramer HDb2840i HD Video Encoder / QAM Modulator – 4 HDMI Inputs

The Kramer HDb2840i is a versatile, rackmount-ready HD video encoder and QAM/DVB modulator designed for professional AV and RF distribution systems. With four HDMI inputs and simultaneous RF and IP output, it provides a flexible, all-in-one solution for delivering high-definition content over coax and IP networks.

Ideal for hospitality, healthcare, and commercial installations, the HDb2840i converts HDMI sources into QAM, DVB-T, or DVB-C channels while also streaming via UDP IP, allowing seamless integration into modern and legacy infrastructures.

Key Features

• (4) HDMI inputs supporting up to 1080p/1080i with embedded digital audio
• Simultaneous RF (QAM/DVB-T/DVB-C) and UDP IP streaming output
• Supports MPEG-2 and H.264 encoding
• Delivers HD content over both coax and IP networks
• Rackmount design with included rack ears and power supply
• Web-based interface for simplified configuration and management

Applications

• Headend systems for hotels, hospitals, and multi-dwelling units
• Digital signage distribution
• Campus and enterprise video delivery
• Hybrid RF/IP video systems

What’s Included

• HDb2840i Modulator
• Rack mount ears
• Power supply

Important Notes

• HDMI cables sold separately
• Not compatible with closed captioning
