Product ID: DT-QAM-12-SD
Supplier: DataTronix
Description: 12 Source SD RCA to QAM Encoder Modulator

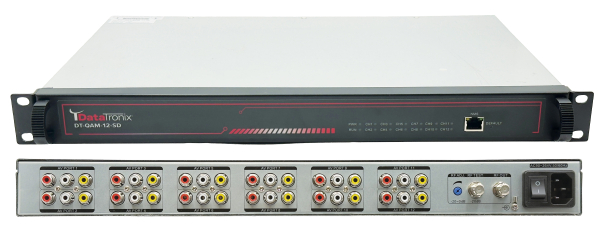

The DataTronix 12-source Standard Definition RCA to QAM Encoder Modulator converts up to twelve standard-definition composite video sources into four digital QAM channels for distribution over a coaxial cable network. Designed for professional video distribution systems, this rack-mount encoder accepts 12 RCA composite video inputs with stereo audio and encodes them using MPEG-2 video compression before modulating them into four agile QAM RF channels.
With 12 RCA composite video inputs, the unit accepts video from sources such as media players, security cameras, satellite receivers, or digital signage players. These inputs are encoded using MPEG-2 video compression and modulated into four configurable QAM digital channels, which can then be distributed through a coaxial network to televisions with integrated QAM tuners. This makes the unit well suited for TV distribution systems that need to support older SD digital televisions or cannot distribute HD content due to rights limitations.
The compact 1RU rack-mount design makes installation simple, while the web-based management interface allows easy configuration of input channels, RF frequencies, and system settings from any connected computer.
Key Features:
Description: 12 Source SD RCA to QAM Encoder Modulator
The DataTronix 12-source Standard Definition RCA to QAM Encoder Modulator converts up to twelve standard-definition composite video sources into four digital QAM channels for distribution over a coaxial cable network. Designed for professional video distribution systems, this rack-mount encoder accepts 12 RCA composite video inputs with stereo audio and encodes them using MPEG-2 video compression before modulating them into four agile QAM RF channels.
With 12 RCA composite video inputs, the unit accepts video from sources such as media players, security cameras, satellite receivers, or digital signage players. These inputs are encoded using MPEG-2 video compression and modulated into four configurable QAM digital channels, which can then be distributed through a coaxial network to televisions with integrated QAM tuners. This makes the unit well suited for TV distribution systems that need to support older SD digital televisions or cannot distribute HD content due to rights limitations.
The compact 1RU rack-mount design makes installation simple, while the web-based management interface allows easy configuration of input channels, RF frequencies, and system settings from any connected computer.
Key Features:
- 12 RCA composite video inputs with stereo audio
- Converts 12 video sources to 4 digital QAM channels
- MPEG-2 video encoding for SD video sources
- Supports MPEG-1, AAC-LC, HE-AAC, and AC3 audio formats
- RF output range 54–864 MHz
- Supports 64QAM and 256QAM modulation
- Web-based configuration and monitoring interface
- High-quality digital RF output: 50+ dBmV
- Typical MER Levels: 38+ dB
- Standard 1RU rack-mount chassis
