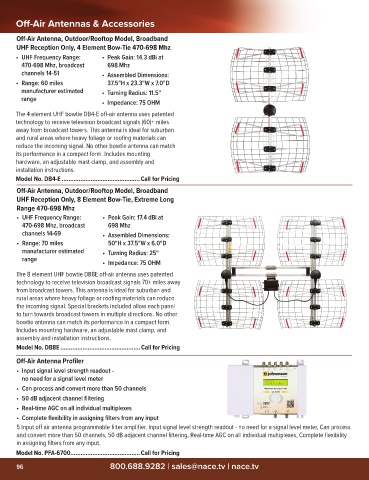

Page 98 - NACE_Catalog_2021

Off-Air Antennas & Accessories

Off-Air Antenna, Outdoor/Rooftop Model, Broadband
UHF Reception Only, 4 Element Bow-Tie 470-698 Mhz

• UHF Frequency Range: • Peak Gain: 14.3 dBi at
470-698 Mhz, broadcast 698 Mhz
channels 14-51 • Assembled Dimensions:
• Range: 60 miles 37.5"H x 23.3"W x 7.0"D
manufacturer estimated • Turning Radius: 11.5"
range • Impedance: 75 OHM

The 4 element UHF bowtie DB4-E off-air antenna uses patented
technology to receive television broadcast signals (60)+ miles
away from broadcast towers. This antenna is ideal for suburban
and rural areas where heavy foliage or roofing materials can
reduce the incoming signal. No other bowtie antenna can match
its performance in a compact form. Includes mounting
hardware, an adjustable mast clamp, and assembly and
installation instructions.
Model No. DB4-E ..............................................Call for Pricing

Off-Air Antenna, Outdoor/Rooftop Model, Broadband
UHF Reception Only, 8 Element Bow-Tie, Extreme Long
Range 470-698 Mhz
• UHF Frequency Range: • Peak Gain: 17.4 dBi at
470-698 Mhz, broadcast 698 Mhz
channels 14-69 • Assembled Dimensions:
• Range: 70 miles 50"H x 37.5"W x 6.0"D
manufacturer estimated • Turning Radius: 25"
range • Impedance: 75 OHM

The 8 element UHF bowtie DB8E off-air antenna uses patented
technology to receive television broadcast signals 70+ miles away
from broadcast towers. This antenna is ideal for suburban and
rural areas where heavy foliage or roofing materials can reduce
the incoming signal. Special brackets included allow each panel
to turn towards broadcast towers in multiple directions. No other
bowtie antenna can match its performance in a compact form.
Includes mounting hardware, an adjustable mast clamp, and
assembly and installation instructions.
Model No. DB8E ...............................................Call for Pricing
Off-Air Antenna Profiler
• Input signal level strength readout -
no need for a signal level meter
• Can process and convert more than 50 channels
• 50 dB adjacent channel filtering
• Real-time AGC on all individual multiplexes
• Complete flexibility in assigning filters from any input
5 Input off air antenna programmable filter amplifier. Input signal level strength readout - no need for a signal level meter, Can process
and convert more than 50 channels, 50 dB adjacent channel filtering, Real-time AGC on all individual multiplexes, Complete flexibility
in assigning filters from any input.
Model No. PFA-6700.........................................Call for Pricing
