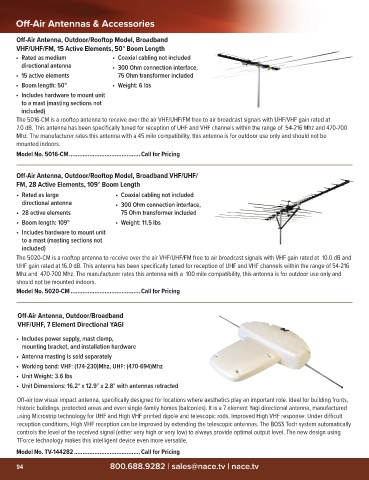

Off-Air Antennas & Accessories

Off-Air Antenna, Outdoor/Rooftop Model, Broadband
VHF/UHF/FM, 15 Active Elements, 50" Boom Length
• Rated as medium • Coaxial cabling not included
directional antenna • 300 Ohm connection interface,
• 15 active elements 75 Ohm transformer included
• Boom length: 50" • Weight: 6 lbs
• Includes hardware to mount unit
to a mast (masting sections not
included)
The 5016-CM is a rooftop antenna to receive over the air VHF/UHF/FM free to air broadcast signals with UHF/VHF gain rated at
7.0 dB. This antenna has been specifically tuned for reception of UHF and VHF channels within the range of 54-216 Mhz and 470-700
Mhz. The manufacturer rates this antenna with a 45 mile compatibility, this antenna is for outdoor use only and should not be
mounted indoors.
Model No. 5016-CM ..........................................Call for Pricing

Off-Air Antenna, Outdoor/Rooftop Model, Broadband VHF/UHF/
FM, 28 Active Elements, 109" Boom Length

• Rated as large • Coaxial cabling not included
directional antenna • 300 Ohm connection interface,
• 28 active elements 75 Ohm transformer included
• Boom length: 109" • Weight: 11.5 lbs
• Includes hardware to mount unit
to a mast (masting sections not
included)
The 5020-CM is a rooftop antenna to receive over the air VHF/UHF/FM free to air broadcast signals with VHF gain rated at 10.0 dB and
UHF gain rated at 16.0 dB. This antenna has been specifically tuned for reception of UHF and VHF channels within the range of 54-216
Mhz and 470-700 Mhz. The manufacturer rates this antenna with a 100 mile compatibility, this antenna is for outdoor use only and
should not be mounted indoors.
Model No. 5020-CM .........................................Call for Pricing

Off-Air Antenna, Outdoor/Broadband
VHF/UHF, 7 Element Directional YAGI

• Includes power supply, mast clamp,
mounting bracket, and installation hardware
• Antenna masting is sold separately
• Working band: VHF: (174-230)Mhz, UHF: (470-694)Mhz
• Unit Weight: 3.6 lbs
• Unit Dimensions: 16.2" x 12.9" x 2.8" with antennas retracted
Off-air low visual impact antenna, specifically designed for locations where aesthetics play an important role. Ideal for building fronts,
historic buildings, protected areas and even single-family homes (balconies). It is a 7 element Yagi directional antenna, manufactured
using Microstrip technology for UHF and High VHF printed dipole and telescopic rods. Improved High VHF response: Under difficult
reception conditions, High VHF reception can be improved by extending the telescopic antennas. The BOSS Tech system automatically
controls the level of the received signal (either very high or very low) to always provide optimal output level. The new design using
TForce technology makes this intelligent device even more versatile.
Model No. TV-144282 .......................................Call for Pricing
