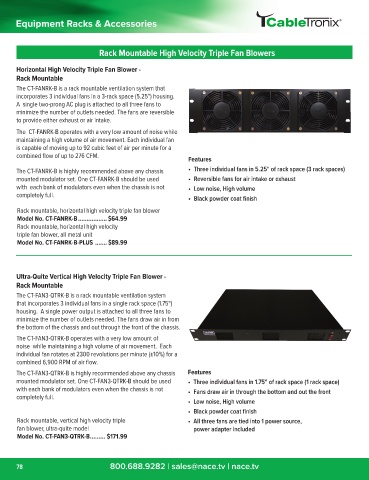

Page 80 - NACE_Catalog_2021

Equipment Racks & Accessories

Rack Mountable High Velocity Triple Fan Blowers

Horizontal High Velocity Triple Fan Blower -
Rack Mountable
The CT-FANRK-B is a rack mountable ventilation system that
incorporates 3 individual fans in a 3-rack space (5.25") housing.
A single two-prong AC plug is attached to all three fans to
minimize the number of outlets needed. The fans are reversible
to provide either exhaust or air intake.
The CT-FANRK-B operates with a very low amount of noise while
maintaining a high volume of air movement. Each individual fan
is capable of moving up to 92 cubic feet of air per minute for a
combined flow of up to 276 CFM. Features

The CT-FANRK-B is highly recommended above any chassis • Three individual fans in 5.25" of rack space (3 rack spaces)
mounted modulator set. One CT-FANRK-B should be used • Reversible fans for air intake or exhaust
with each bank of modulators even when the chassis is not • Low noise, High volume
completely full. • Black powder coat finish

Rack mountable, horizontal high velocity triple fan blower
Model No. CT-FANRK-B ................. $64.99
Rack mountable, horizontal high velocity
triple fan blower, all metal unit
Model No. CT-FANRK-B-PLUS ....... $89.99

Ultra-Quite Vertical High Velocity Triple Fan Blower -
Rack Mountable
The CT-FAN3-QTRK-B is a rack mountable ventilation system
that incorporates 3 individual fans in a single rack space (1.75")
housing. A single power output is attached to all three fans to
minimize the number of outlets needed. The fans draw air in from
the bottom of the chassis and out through the front of the chassis.
The CT-FAN3-QTRK-B operates with a very low amount of
noise while maintaining a high volume of air movement. Each
individual fan rotates at 2300 revolutions per minute (±10%) for a
combined 6,900 RPM of air flow.
The CT-FAN3-QTRK-B is highly recommended above any chassis Features
mounted modulator set. One CT-FAN3-QTRK-B should be used • Three individual fans in 1.75" of rack space (1 rack space)
with each bank of modulators even when the chassis is not • Fans draw air in through the bottom and out the front
completely full.
• Low noise, High volume
• Black powder coat finish
Rack mountable, vertical high velocity triple • All three fans are tied into 1 power source,
fan blower, ultra-quite model power adapter included
Model No. CT-FAN3-QTRK-B ......... $171.99
