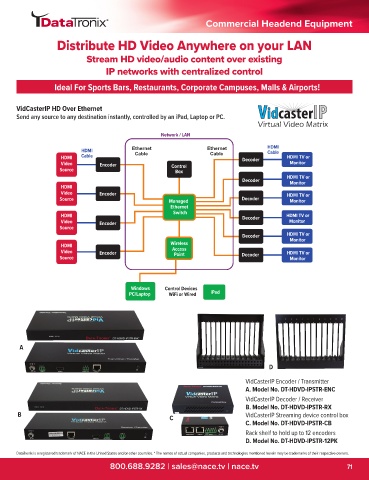

Commercial Headend Equipment

Distribute HD Video Anywhere on your LAN

Stream HD video/audio content over existing

IP networks with centralized control

Ideal For Sports Bars, Restaurants, Corporate Campuses, Malls & Airports!

VidCasterIP HD Over Ethernet
Send any source to any destination instantly, controlled by an iPad, Laptop or PC.

Network / LAN

HDMI Ethernet Ethernet HDMI
Cable
HDMI Cable Cable Cable Decoder HDMI TV or
Video Encoder Control Monitor
Source Box
HDMI TV or
Decoder Monitor
HDMI
Video Encoder HDMI TV or
Source Managed Decoder Monitor
Ethernet
HDMI Switch Decoder HDMI TV or
Video Encoder Monitor
Source
Decoder HDMI TV or
Monitor
HDMI Wireless
Video Encoder Access HDMI TV or
Point
Source Decoder Monitor

Windows Control Devices
PC/Laptop WiFi or Wired iPad

A

D

VidCasterIP Encoder / Transmitter
A. Model No. DT-HDVD-IPSTR-ENC
VidCasterIP Decoder / Receiver
B. Model No. DT-HDVD-IPSTR-RX
B C VidCasterIP Streaming device control box
C. Model No. DT-HDVD-IPSTR-CB
Rack shelf to hold up to 12 encoders
D. Model No. DT-HDVD-IPSTR-12PK

DataTronix is a registered trademark of NACE in the United States and/or other countries. * The names of actual companies, products and technologies mentioned herein may be trademarks of their respective owners.
800.688.9282 | sales@nace.tv | nace.tv 71
