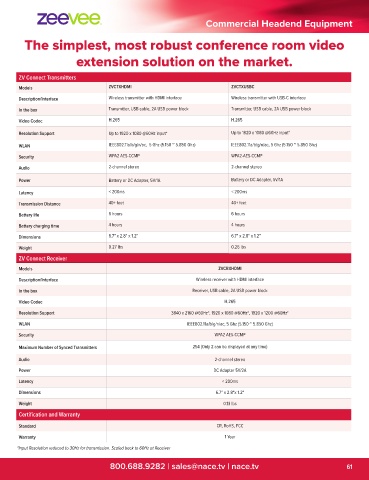

Page 63 - NACE_Catalog_2021

Commercial Headend Equipment

The simplest, most robust conference room video

extension solution on the market.

ZV Connect Transmitters
Models ZVCTXHDMI ZVCTXUSBC
Description/Interface Wireless transmitter with HDMI interface Wireless transmitter with USB-C interface

In the box Transmitter, USB cable, 2A USB power block Transmitter, USB cable, 2A USB power block
Video Codec H.265 H.265
Resolution Support Up to 1920 x 1080 @60Hz input* Up to 1920 x 1080 @60Hz input*

WLAN IEEE802.11a/b/g/n/ac, 5 Ghz (5.150 ~ 5.850 Ghz) IEEE802.11a/b/g/n/ac, 5 Ghz (5.150 ~ 5.850 Ghz)
Security WPA2 AES-CCMP WPA2-AES-CCMP

Audio 2-channel stereo 2-channel stereo
Power Battery or DC Adapter, 5V/1A Battery or DC Adapter, 5V/1A
Latency < 200ms < 200ms

Transmission Distance 40+ feet 40+ feet
Battery life 6 hours 6 hours
Battery charging time 4 hours 4 hours

Dimensions 6.7" x 2.8" x 1.2" 6.7" x 2.8" x 1.2"
Weight 0.27 lbs 0.26 lbs
ZV Connect Receiver
Models ZVCRXHDMI
Description/Interface Wireless receiver with HDMI interface
In the box Receiver, USB cable, 2A USB power block

Video Codec H.265
Resolution Support 3840 x 2160 @60Hz*, 1920 x 1080 @60Hz*, 1920 x 1200 @60Hz*
WLAN IEEE802.11a/b/g/n/ac, 5 Ghz (5.150 ~ 5.850 Ghz)

Security WPA2 AES-CCMP
Maximum Number of Synced Transmitters 254 (Only 2 can be displayed at any time)
Audio 2-channel stereo

Power DC Adapter 5V/2A
Latency < 200ms
Dimensions 6.7" x 2.8"x 1.2"

Weight 0.13 lbs
Certification and Warranty
Standard CR, RoHS, FCC
Warranty 1 Year

*Input Resolution reduced to 30Hz for transmission. Scaled back to 60Hz at Receiver
