Product ID: CTA-WM-750-30
Supplier: CableTronix
Description: Broadband Professional Distribution Amplifier – Indoor, +32 dB Gain, 47–750 MHz
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.

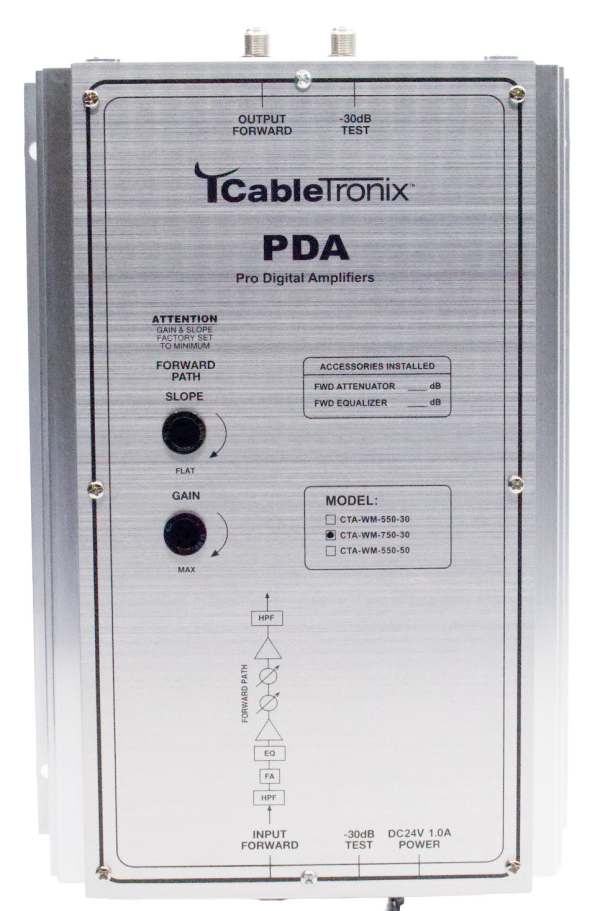

The CTA-WM-750-30 is a versatile forward-path broadband amplifier designed for RF systems requiring extended bandwidth up to 750 MHz. With a 32 dB minimum gain, it is well suited for SMATV and CATV installations with expanded channel capacity or higher-frequency distribution requirements. Built-in gain and slope controls allow installers to fine-tune system levels and compensate for coaxial cable loss, ensuring balanced, high-quality signal performance. The amplifier also includes –30 dB test ports for convenient monitoring, a heavy-duty aluminum enclosure for superior heat dissipation, and operates using the included 24VDC external power adapter.
Key Features
Description: Broadband Professional Distribution Amplifier – Indoor, +32 dB Gain, 47–750 MHz
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-750-30 is a versatile forward-path broadband amplifier designed for RF systems requiring extended bandwidth up to 750 MHz. With a 32 dB minimum gain, it is well suited for SMATV and CATV installations with expanded channel capacity or higher-frequency distribution requirements. Built-in gain and slope controls allow installers to fine-tune system levels and compensate for coaxial cable loss, ensuring balanced, high-quality signal performance. The amplifier also includes –30 dB test ports for convenient monitoring, a heavy-duty aluminum enclosure for superior heat dissipation, and operates using the included 24VDC external power adapter.
Key Features
- 47–750 MHz forward bandwidth – supports extended mid- and high-band SMATV/CATV channel plans
- 32 dB minimum gain – provides stable, consistent amplification for medium-length RF distribution runs
- 10 dB adjustable slope control – compensates for frequency-dependent tilt in long coaxial cable installations
- 12 dB forward gain control – allows precise onsite signal balancing for optimal system performance
- Push-pull hybrid amplifier design – delivers low distortion and clean, high-quality broadband output
- –30 dB input and output test points – offer fast, non-intrusive diagnostics during installation or maintenance
- Rugged aluminum enclosure with wide operating range – reliable operation from –4°F to 140°F
