Product ID: CTA-WM-550-50
Supplier: CableTronix
Description: Broadband Professional Distribution Amplifier – Indoor, +49 dB Gain, 47–550 MHz
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband amplification for forward-path RF distribution. Engineered for multi-channel systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.

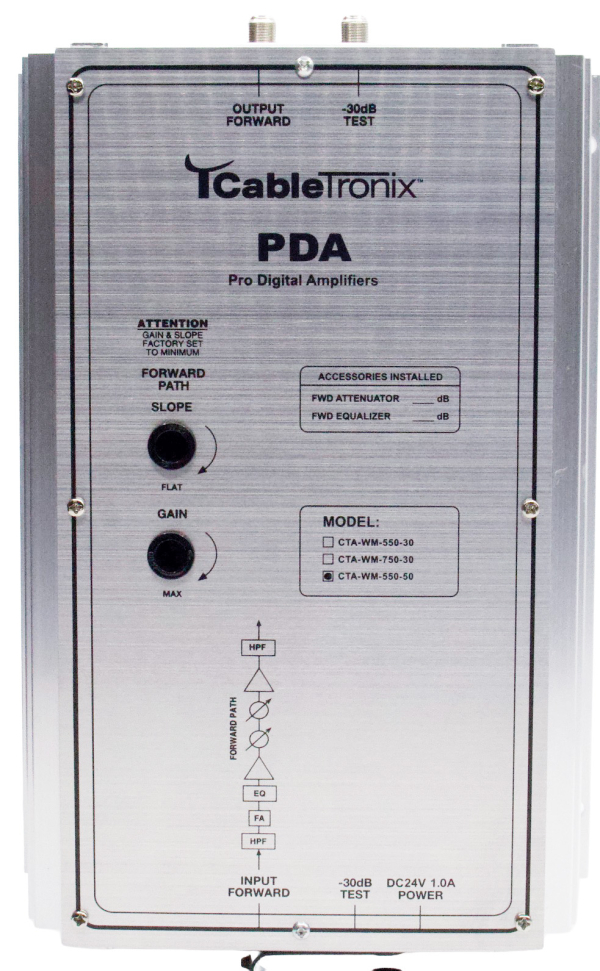

The CTA-WM-550-50 is a high-output broadband distribution amplifier designed for long cable runs, large commercial facilities, and other high-loss RF distribution environments. With a 47–550 MHz forward bandwidth and a powerful 49 dB minimum gain, it provides the stable, high-level signal reinforcement required for extensive CATV and SMATV installations. Integrated gain and slope controls allow precise balancing of cable loss, while –30 dB test points enable fast, non-intrusive diagnostics. The rugged aluminum enclosure ensures excellent heat dissipation and long-term reliability.
Key Features
Description: Broadband Professional Distribution Amplifier – Indoor, +49 dB Gain, 47–550 MHz
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband amplification for forward-path RF distribution. Engineered for multi-channel systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-550-50 is a high-output broadband distribution amplifier designed for long cable runs, large commercial facilities, and other high-loss RF distribution environments. With a 47–550 MHz forward bandwidth and a powerful 49 dB minimum gain, it provides the stable, high-level signal reinforcement required for extensive CATV and SMATV installations. Integrated gain and slope controls allow precise balancing of cable loss, while –30 dB test points enable fast, non-intrusive diagnostics. The rugged aluminum enclosure ensures excellent heat dissipation and long-term reliability.
Key Features
- 47–550 MHz forward bandwidth – supports mid-band SMATV/CATV channel plans and broadband carriers
- High-power 49 dB minimum gain – ideal for long cable runs, large facilities, and high-loss RF distribution plants
- 10 dB adjustable slope control – corrects high-frequency tilt caused by coaxial cable attenuation
- 12 dB forward gain control – enables precise onsite signal balancing for optimal performance
- –30 dB input/output test ports – offer quick, non-intrusive access for diagnostics and signal monitoring
- Push-pull hybrid amplifier architecture – ensures excellent linearity and low distortion across all channels
- Rugged aluminum enclosure with wide operating range – reliable operation from –4°F to 140°F
- UL-approved 24VDC external power supply – delivers stable, reliable operation in demanding environments
