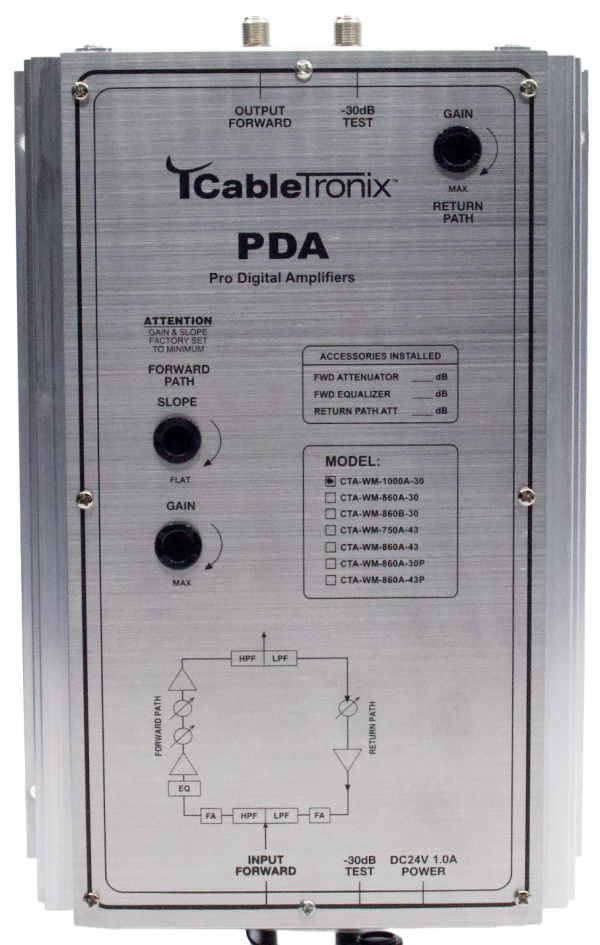

Product ID: CTA-WM-1000A-30
Supplier: CableTronix
Description: Broadband Pro Distribution Amplifier – Indoor, +30 dB Gain, 49–1000 MHz, Wall-Mount, Two-Way with 5–36 MHz Return Pathz
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-1000A-30 provides a wide 49–1000 MHz forward bandwidth, offering full 1 GHz system compatibility. Its +30 dB minimum gain ensures strong, clean signal levels throughout commercial RF networks. An active 5–36 MHz return path supports DOCSIS communication, set-top box data channels, remote monitoring, and other interactive system functions.
Key Features
Description: Broadband Pro Distribution Amplifier – Indoor, +30 dB Gain, 49–1000 MHz, Wall-Mount, Two-Way with 5–36 MHz Return Pathz
The CableTronix Pro Digital Amplifiers Indoor Series delivers professional-grade broadband hybrid amplification with full two-way capability. Engineered for multi-channel RF distribution systems, these amplifiers are ideal for boosting signals sourced from SMATV headends, modulators, encoders, and other broadband signal sources.
The CTA-WM-1000A-30 provides a wide 49–1000 MHz forward bandwidth, offering full 1 GHz system compatibility. Its +30 dB minimum gain ensures strong, clean signal levels throughout commercial RF networks. An active 5–36 MHz return path supports DOCSIS communication, set-top box data channels, remote monitoring, and other interactive system functions.
Key Features
- 49–1000 MHz forward bandwidth – supports full 1 GHz CATV/SMATV system architectures, accommodating large digital channel plans, QAM carriers, and broadband video services
- Active 5–36 MHz return path – enables DOCSIS upstream communication, interactive TV features, remote monitoring, and system control data
- +30 dB minimum gain – provides clean, stable signal reinforcement ideal for medium-length commercial RF distribution networks
- 10 dB adjustable slope control – compensates for high-frequency roll-off inherent in long coaxial cable runs, improving end-to-end signal balance
- 12 dB forward gain control – allows precise onsite level tuning to achieve optimal system performance across varying cable distances and load conditions
- –30 dB input and output test points – offer fast, non-intrusive access for diagnostics, simplifying installation and maintenance procedures
- Optional plug-in equalizer modules (CTA-WM-EQ-1000-*) – available in 6, 9, 12, and 18 dB values for customized slope correction in 1 GHz systems
- Optional plug-in attenuator modules (CTA-WM-AT-*) – available in 6, 9, and 12 dB values for precise input attenuation when managing high-level signals
- Rugged aluminum enclosure with wide operating range – reliable operation from –4°F to 140°F
