Product ID: PTP RapidFire 5-23
Supplier: LigoWave

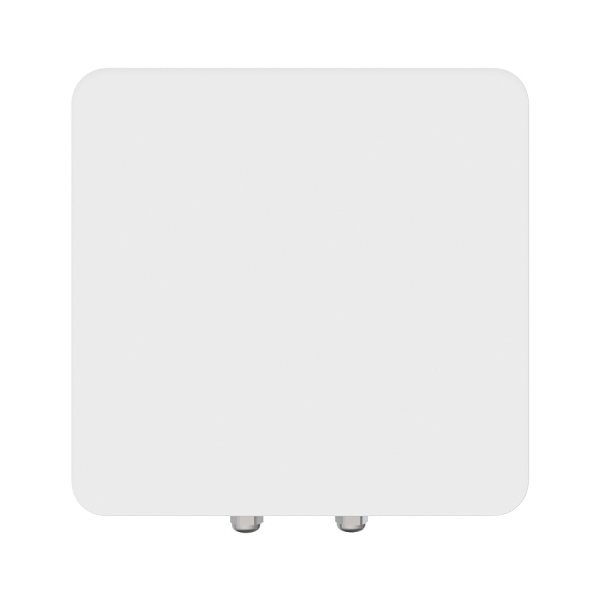

Description: Outdoor Wireless Point-to-Point Bridge — Outstanding Capacity & Reliability
Deliver exceptional speed, range, and stability with the PTP RapidFire 5-23, a high-capacity outdoor wireless point-to-point (PTP) bridge engineered for demanding network applications and long-distance links.
Unmatched Throughput & RF Performance
Achieve up to 700 Mbps of real throughput with RapidFire’s advanced RF design, supporting 256-QAM modulation and up to 31 dBi output power. The proprietary W-Jet V protocol, purpose-built for PTP connectivity, minimizes interference even across extended distances and maintains ultra-low latency between 2–4 ms, ensuring a smooth and reliable connection.
Professional Outdoor Design
Built for durability and ease of deployment, the PTP RapidFire 5-23 features a rugged IP67-rated cast aluminum enclosure designed to withstand harsh environmental conditions. Its robust mounting bracket ensures fast installation and stability under heavy wind loads, while the integrated 45° rotatable antenna offers increased flexibility in congested spectrum areas. A GORE® membrane vent provides rapid pressure equalization to prevent condensation, maintaining consistent seal performance. Additional design enhancements include a detachable handle for easy tower transport and RGB LED indicators for real-time signal strength (1 dBm step precision) during alignment.
Powerful All-in-One Hardware Platform
Driven by a 1.2 GHz CPU, the RapidFire 5-23 delivers exceptional data processing power and supports up to 200,000 packets per second. Dual Gigabit Ethernet ports, including one with PoE passthrough, enable 1+1 failover or repeater configurations, making it ideal for high-performance and mission-critical applications such as video surveillance or enterprise backhaul. The unit also integrates surge and ESD protection compliant with IEC Class 4 standards, ensuring long-term reliability and hardware safety.
Description: Outdoor Wireless Point-to-Point Bridge — Outstanding Capacity & Reliability
Deliver exceptional speed, range, and stability with the PTP RapidFire 5-23, a high-capacity outdoor wireless point-to-point (PTP) bridge engineered for demanding network applications and long-distance links.
Unmatched Throughput & RF Performance
Achieve up to 700 Mbps of real throughput with RapidFire’s advanced RF design, supporting 256-QAM modulation and up to 31 dBi output power. The proprietary W-Jet V protocol, purpose-built for PTP connectivity, minimizes interference even across extended distances and maintains ultra-low latency between 2–4 ms, ensuring a smooth and reliable connection.
Professional Outdoor Design
Built for durability and ease of deployment, the PTP RapidFire 5-23 features a rugged IP67-rated cast aluminum enclosure designed to withstand harsh environmental conditions. Its robust mounting bracket ensures fast installation and stability under heavy wind loads, while the integrated 45° rotatable antenna offers increased flexibility in congested spectrum areas. A GORE® membrane vent provides rapid pressure equalization to prevent condensation, maintaining consistent seal performance. Additional design enhancements include a detachable handle for easy tower transport and RGB LED indicators for real-time signal strength (1 dBm step precision) during alignment.
Powerful All-in-One Hardware Platform
Driven by a 1.2 GHz CPU, the RapidFire 5-23 delivers exceptional data processing power and supports up to 200,000 packets per second. Dual Gigabit Ethernet ports, including one with PoE passthrough, enable 1+1 failover or repeater configurations, making it ideal for high-performance and mission-critical applications such as video surveillance or enterprise backhaul. The unit also integrates surge and ESD protection compliant with IEC Class 4 standards, ensuring long-term reliability and hardware safety.
Spec Sheet
