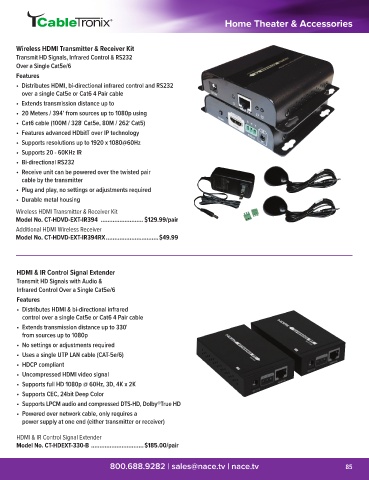

Page 87 - NACE_Catalog_2021

Home Theater & Accessories

Wireless HDMI Transmitter & Receiver Kit
Transmit HD Signals, Infrared Control & RS232
Over a Single Cat5e/6
Features
• Distributes HDMI, bi-directional infrared control and RS 232
over a single Cat5e or Cat6 4 Pair cable
• Extends transmission distance up to
• 20 Meters / 394’ from sources up to 1080p using
• Cat6 cable (100M / 328ʹ Cat5e, 80M / 262ʹ Cat5)
• Features advanced HDbitT over IP technology
• Supports resolutions up to 1920 x 1080@60Hz
• Supports 20 - 60KHz IR
• Bi-directional RS232
• Receive unit can be powered over the twisted pair
cable by the transmitter
• Plug and play, no settings or adjustments required
• Durable metal housing
Wireless HDMI Transmitter & Receiver Kit
Model No. CT-HDVD-EXT-IR394 ......................... $129.99/pair
Additional HDMI Wireless Receiver
Model No. CT-HDVD-EXT-IR394RX ...............................$49.99

HDMI & IR Control Signal Extender
Transmit HD Signals with Audio &
Infrared Control Over a Single Cat5e/6
Features
• Distributes HDMI & bi-directional infrared
control over a single Cat5e or Cat6 4 Pair cable
• Extends transmission distance up to 330ʹ
from sources up to 1080p
• No settings or adjustments required
• Uses a single UTP LAN cable (CAT-5e/6)
• HDCP compliant
• Uncompressed HDMI video signal
• Supports full HD 1080p @ 60Hz, 3D, 4K x 2K
• Supports CEC, 24bit Deep Color
• Supports LPCM audio and compressed DTS-HD, Dolby®True HD
• Powered over network cable, only requires a
power supply at one end (either transmitter or receiver)

HDMI & IR Control Signal Extender
Model No. CT-HDEXT-330-B ...............................$185.00/pair

800.688.9282 | sales@nace.tv | nace.tv 85
