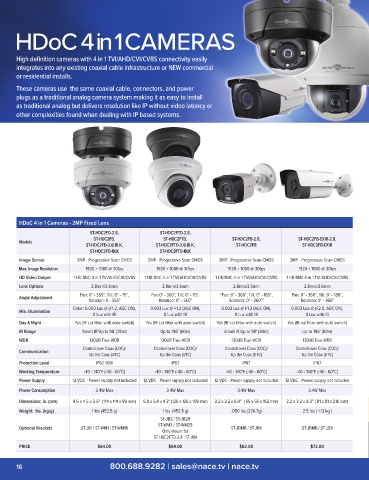

Page 18 - NACE_Catalog_2021

Video Surveillance
Section/Product Header
HDoC 4 in 1 CAMERAS

High definition cameras with 4 in 1 TVI/AHD/CVI/CVBS connectivity easily
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
integrates into any existing coaxial cable infrastructure or NEW commercial
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
or residential installs.
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
These cameras use the same coaxial cable, connectors, and power
plugs as a traditional analog camera system making it as easy to install
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
as traditional analog but delivers resolution like IP without video latency or
⊲ ldkfjglksdjfg;lksjdflkgsdfkgdfjk
other complexities found when dealing with IP based systems.

HDoC 4 in 1 Cameras - 2MP Fixed Lens

ST-HDC2FD-2.8, ST-HDC2FTD-2.8,
ST-HDC2FD, ST-HDC2FTD, ST-HDC2FB-2.8, ST-HDC2FB-EXIR-2.8,
Models
ST-HDC2FD-2.8-BLK, ST-HDC2FTD-2.8-BLK, ST-HDC2FB ST-HDC2FB-EXIR
ST-HDC2FD-BLK ST-HDC2FTD-BLK
Image Sensor 2MP - Progressive Scan CMOS 2MP - Progressive Scan CMOS 2MP - Progressive Scan CMOS 2MP - Progressive Scan CMOS
Max. Image Resolution 1920 × 1080 @ 30fps 1920 × 1080 @ 30fps 1920 × 1080 @ 30fps 1920 × 1080 @ 30fps
HD Video Output 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS 1 HD BNC 4 in 1 TVI/AHD/CVI/CVBS
Lens Options 2.8mm/3.6mm 2.8mm/3.6mm 2.8mm/3.6mm 2.8mm/3.6mm
Angle Adjustment Pan: 0° - 355°, Tilt: 0° - 75°, Pan:0° - 360°, Tilt: 0° - 75°, "Pan: 0° - 360°, Tilt: 0° - 180°, Pan: 0° - 360°, Tilt: 0° - 180°,
Rotation: 0° - 360°
Rotation: 0 - 355°
Rotation: 0° - 360°"
Rotation: 0° - 360°
Color: 0.003 Lux @ (F1.2, AGC ON), 0.003 Lux @ F1.2 (AGC ON), 0.003 Lux @ F1.2 (AGC ON), 0.003 Lux @ (F2.0, AGC ON),
Min. Illumination
0 Lux with IR 0 Lux with IR 0 Lux with IR 0 Lux with IR
Day & Night Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch) Yes (IR cut filter with auto switch)
IR Range Smart IR Up to 98' (30m) Up to 196' (60m) Smart IR Up to 98' (30m) Up to 196' (60m)
WDR 130dB True WDR 130dB True WDR 130dB True WDR 130dB True WDR
Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/ Control over Coax (COC)/
Communication
Up the Coax (UTC) Up the Coax (UTC) Up the Coax (UTC) Up the Coax (UTC)
Protection Level IP67, IK10 IP67 IP67 IP67
Working Temperature -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C) -40 - 140°F (-40 - 60°C)
Power Supply 12 VDC - Power supply not included 12 VDC - Power supply not included 12 VDC - Power supply not included 12 VDC - Power supply not included
Power Consumption 3.4W Max 3.4W Max 3.4W Max 3.4W Max
Dimensions: in. (mm) 4.5 x 4.5 x 3.5" (114 x 114 x 89 mm) 5.0 x 5.0 x 4.3" (126 x 126 x 109 mm) 2.2 x 2.2 x 6.0" ( 55 x 55 x 152 mm) 3.2 x 3.2 x 8.3" ( 81 x 81 x 210 mm)
Weight: lbs. (kg/g) 1 lbs (453.5 g) 1 lbs (453.5 g) .050 lbs (226.7g) 2.5 lbs ( 1.13 kg )
ST-JB2 / ST-JB2B
ST-WM2 / ST-WM2B
Optional Brackets ST-JB1 / ST-WM1 / ST-WM1B ST-JBMB / ST-JB4 ST-JBMB / ST-JB4
Only Mount for
ST-HDC2FTD-2.8 - ST-JB4
PRICE $64.00 $64.00 $62.00 $72.00
