Televes FibreData GPON for Hospitality (FTTR)

Deliver next-generation connectivity for hotels and resorts with Televes FibreData GPON (Gigabit Passive Optical Network) solutions, designed for multi-service, high-capacity fiber infrastructure.

Benefits of Televes GPON for Hospitality

arrow

One fiber,
every service

Internet, public/private Wi-Fi, IPTV/Interactive TV, RF TV overlay, VoIP/telephony, CCTV, digital signage, access control, home automation, casting, nPVR, mobile apps—delivered over one passive optical infrastructure.

arrow

Scalable
Connectivity

GPON delivers 2.5 Gbps downstream / 1.25 Gbps upstream per PON with consistent speed and low latency for large user counts.

arrow

Lower Operational
Costs

Passive tech means up to 30% CapEx and 80% OpEx savings, plus smaller footprint and simpler maintenance.

arrow

Enterprise grade
security

User isolation, traffic segmentation (VLANs), and AES-128 encryption keep guest and operations traffic protected.

arrow

Go the
distance

Fiber services over kilometers (far beyond ~100 m copper limits) to cover towers, villas, and wide campuses.

arrow

Proven
globally

Televes FTTR powers 99,000+ rooms worldwide for leading brands.

Key Products in Our FibreData GPON Solutions

OLT512EVO

Read More

FibreData ONTS

Read More

SFP Adapters

Read More

Video Overlay Headends

Read More

FibreData GPON Monitoring System

Read More

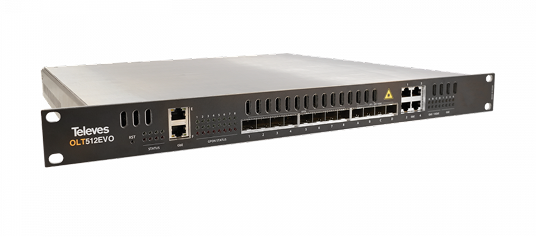

OLT512EVO

Transform Your Hotel's Connectivity with the OLT512EVO GPON Headend

Maximize your hotel’s capacity to handle IP services with the OLT512EVO. This Optical Line Terminal (OLT) supports up to 16 services per ONT (versus the typical 8), letting you run both guest entertainment and property operations on one platform. Each of its 8 PON interfaces serves up to 64 ONTs (512 subscribers total) at 2.488/1.244 Gbps per GPON port.

Download User Guide
Key Advantages of OLT512EVO
arrow

Intuitive GPON Management

ONTs connect to any PON port no fixed association enabling fast installation and flexible GPON architecture. Bulk ONT configuration simplifies multi-room service activation.

arrow

Robust & Energy
Efficient

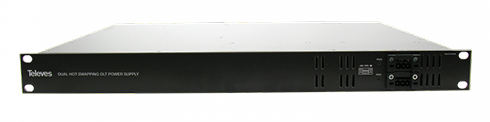

Dual hot-swappable power supplies ensure redundancy. Features like EEE, ActiPHY, adaptive fans, and thermal control deliver reliable performance with reduced power consumption.

arrow

Intuitive GPON Management

A user-friendly web interface supports centralized bulk management for hospitality networks, making GPON network administration simple.

lock

Cost Savings on Hardware

Comes with 4× GbE ports, integrated DHCP server, and dual power supplies, eliminating extra SFP modules, external routers, and power units—cutting CapEx significantly.

Interfaces & specs

GPON: 8× GPON full-duplex
ports (2.5/1.25 Gbps)

Uplinks: 4× 10 G SFP+ / 1000Base-X, 4× 10/100/1000Base-T, plus 2× 10/100/1000Base-T for management

Standards & QoS: ITU-T G.984/OMCI, AES-128, FEC, IEEE 802.1q/1p, IPv4/IPv6, 802.1ad; IGMP v2/v3 with snooping/proxy queri

Auth & security: NAS, RADIUS,
TACACS+; QoS assignment

Chassis: 482×43×398 mm (19”, 1U); 110–220
VAC, 50/60 Hz; 3.895 kg

FibreData ONTs

High-Performance Room Terminals

Deliver up to 16 services such as Wi-Fi, IPTV, VoIP, and RF overlay TV directly to guest rooms with Televes FibreData ONTs, designed for hospitality GPON networks.

Download Spec
ont models

Voice Support

2× FXS ports for VoIP or legacy telephony.

Wireless Access

4 Dual-band Wi-Fi AC (2.4 & 5 GHz) for seamless guest connectivity.

RF Overlay

Integrated TV signal distribution over fiber.

High-Speed Connectivity

 4× Gigabit Ethernet ports for wired devices.

Voice Support

2× FXS ports for VoIP or legacy telephony.

Wireless Access

 Dual-band Wi-Fi AC (2.4 & 5 GHz) for seamless guest connectivity.

RF Overlay

Integrated TV signal distribution over fiber.

arrow

Smart Management

Supports OMCI, TR-069, and web interface for remote provisioning.

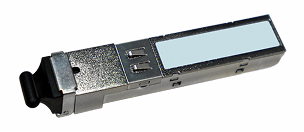

SFP Adapters

 OLT & Uplink Options

SFP adapters ensure reliable data transmission over single-mode optical fibers and Ethernet cables. They are the perfect solution for expanding your network reach.

  • Compact SFP/SFP+ modules for fiber & Ethernet, low power
  • Support mono-mode and multimode fiber connections
  • Extend transmission distances with efficient design
  • GPON B+/C+ modules (SC/UPC) for OLT512EVO systems
  • 1 GbE (LC/UPC) and 10 GbE SFP+ (LC/UPC, 1310 nm, 10 km)
Download User Guide

Video Overlay Headends

RF TV over Fiber

Video Overlay Headends deliver terrestrial/satellite RF TV as an overlay alongside GPON data. Televes offers optical transmitters, amplifiers, and multiplexers in FibreData and T.0X ranges—rack-mount, automated, energy-efficient, and simple to install. DOCSIS 3.1-compatible options available.

Optical Transmitters

These modules transform RF signals into optical signals, so they can be distributed on the GPON network.

Download User Guide

Amplifiers/Multiplexers

Y Headends from this series are used to transform RF signals into optical signals, and vice versa. This series also offers modules to combine television and data (GPON) signals, other network devices such as optical amplifiers and splitters.

Download User Guide

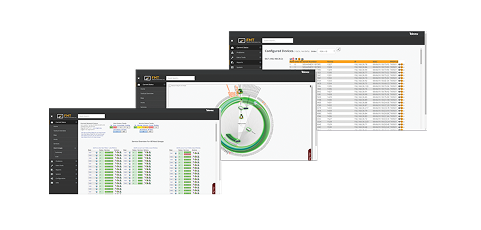

FibreData

GPON Monitoring System

A centralized FCAPS  (Fault, Configuration, Accounting, Performance and Security) model for complete GPON network control, from deployment to maintenance.

Download User Guide

Key Capabilities:

  • Remote Monitoring:Remote Monitoring: Manage OLTs, ONTs, and optical devices from any location.
  • Auto Configuration:Bulk ONT provisioning and error testing in one step.
  • Real-Time Dashboard:Visualize network status and generate reports.
  • Bulk Updates:Apply firmware or config changes across the network instantly.

Results:

Faster rollout, proactive maintenance, and lower operating costs for hospitality GPON networks.

Explore More Products at Nace

How Televes GPON Infrastructure Powers Hotel Networks

A typical deployment unifies internet reception, GPON headend (OLT512EVO), YEDFA + WDM, splitters, and ONTs across rooms and common areas to deliver services like IPTV/ITV, VoD, nPVR, casting, Wi-Fi, VoIP, RF TV, CCTV, access control, home automation, and digital signage, managed end-to-end via the monitoring platform.

Why GPON For Hospitality Now?

Guest experience

Consistent multi-device streaming, casting, and interactive TV in every room, even at peak occupancy.

Operational simplicity

Fewer active devices, centralized management, longer lifecycle.

Future-ready

Seamless path to more services without new cabling runs.

Implementation & Services

Step - 01

Design & bill-of-materials

Fiber topology, split ratios, ONT profiles by room type.

Step - 02

Deployment

Headend staging, VLAN & QoS policy design, RF overlay integration where needed.

Step - 03

Optimization & handoff

Capacity planning, FCAPS setup, staff enablement.

CENTRALIZED MANAGEMENT

Trusted Worldwide

Televes FTTR hospitality solutions are already running in 99,000+ rooms globally, with flagship properties across the America, Europe, and the Middle East—backed by 12 international subsidiaries and distribution in 100+ countries.

FAQs: Televes GPON Solutions

For hotels and resorts, Televes GPON ensures fast, reliable connectivity, making guest experiences seamless and operations simpler.

Explore More Products at Nace
What services can run over the same GPON?
Internet, public/private Wi-Fi, IPTV/ITV, RF TV overlay, VoIP, telephony, CCTV, access control, digital signage, home automation, casting, nPVR, and mobile apps all over one fiber.
Are these GPON secure for guest and back-office traffic?
Traffic isolation via VLANs and AES-128 encryption protects users and services end-to-end.
Can I keep my RF TV today and migrate later?
Yes! Televes provides RF overlay headends, optical TX, and amplifiers/multiplexers to run RF and GPON together on the same fiber.

Ready to
upgrade your
hotel's network infrastructure?

consultation

Get a free consultation and discover how to cut costs and boost guest experience with Televes GPON solutions.
